Sanwa KS1 3-Phase Detector [Contact Type]
₱3,819.00

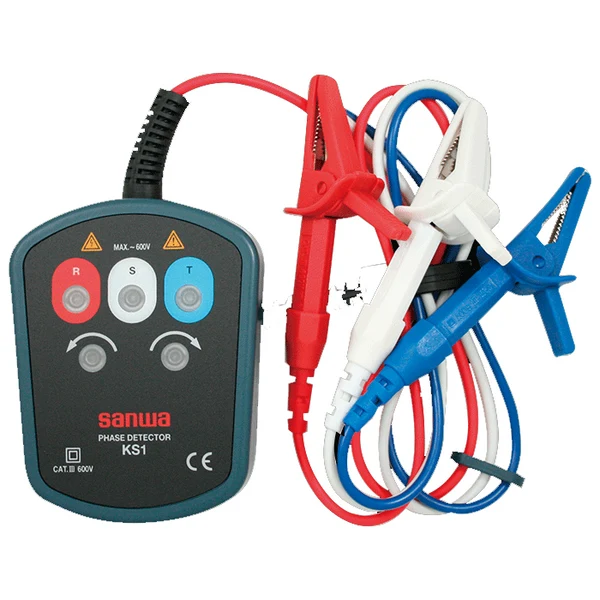

Sanwa KS1 3-Phase Detector [Contact Type]
This instrument is a 3 phase detector that allows you to determine the open phase and rotating direction.
- Large size alligator clips
- Magnets on the back of the main unit allow it to be fixed in a distribution board and other metals
| Measurement | Open Phase and Phase Rotation Detection |
| Voltage range | 3 Phase AC100 to 500 V |
| Frequency | 45 to 70 Hz |
| Time limit | AC110V: Continuous AC220V: 3 hours AC480V: 12 minutes |
| Safety standards | IEC61010-1 CATⅢ 500V IEC61326、IEC61010-031 |
| Size/Mass | 102(H)×78(W)×32.5(D)mm / approx. 212 grams |
| Cord length | Approx. 0.6 m |

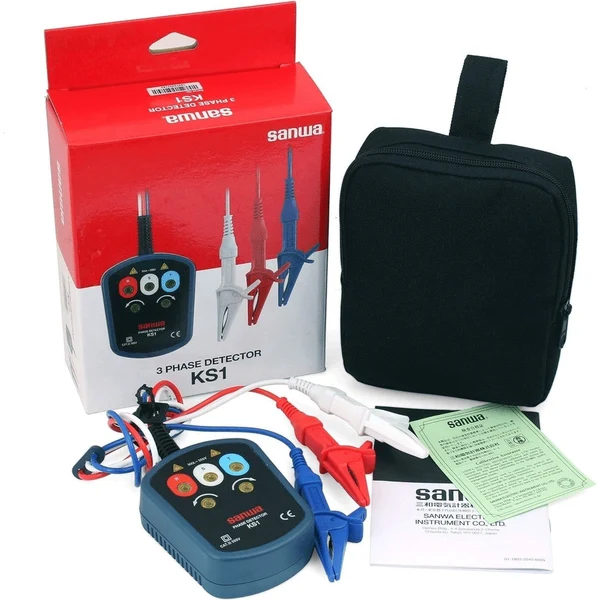

| Accessories | Carrying pouch, instruction manual x 1 |
