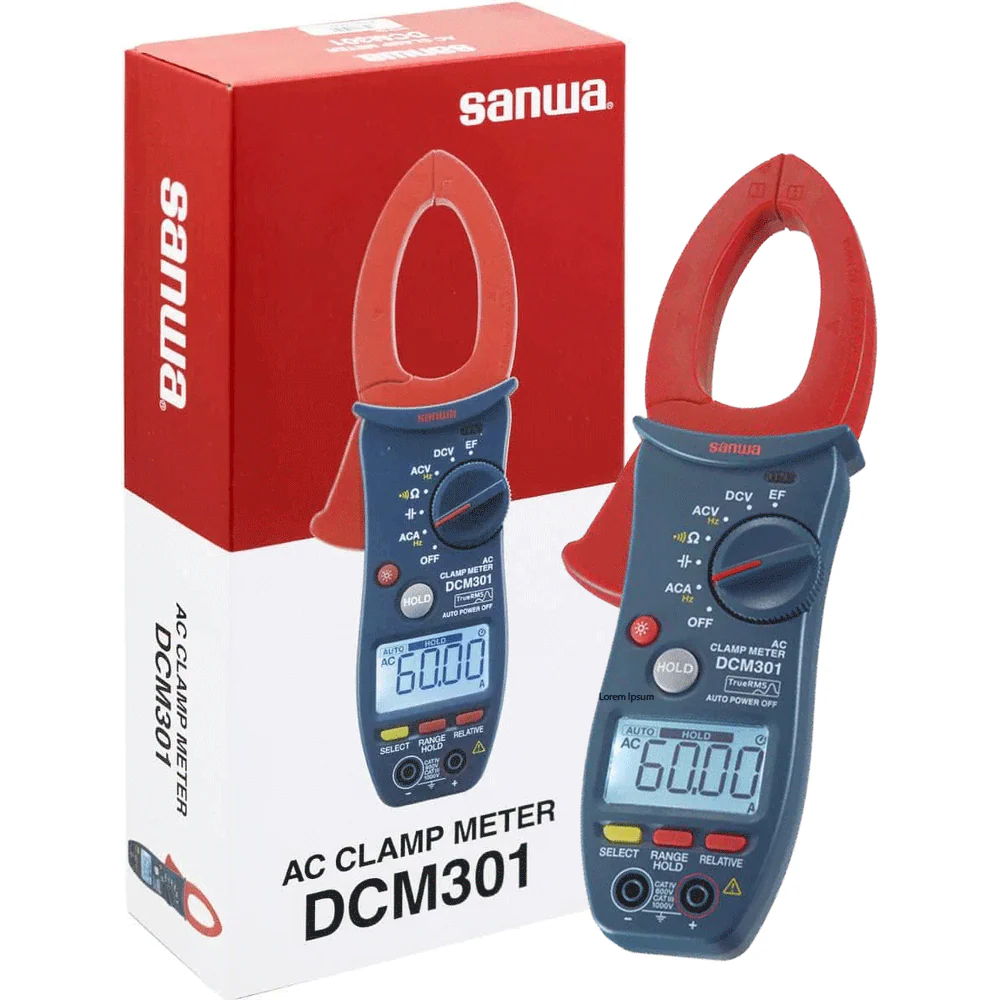

Sanwa DCM301 AC Clamp Meter / Tester [1000A AC] True RMS
₱8,400.00
Sanwa DCM301 AC Clamp Meter / Tester [1000A AC] True RMS
CAT.IV, AC current measurable max. 1000A
- The CT shape makes it easier to clamp cable in crowded spaces.
- An electric field (EF) function is incorporated in the tip of the CT to enable detection of about AC 90V or more.
- Clamp opening size: 34mm
- Large, easy-to -press HOLD button.
- Equipped with LED light to illuminate the measurement target.
- Continuity check buzzer
- Auto power off (30min)
-
Low batter power indication
Introducing the Sanwa DCM301 Clamp Meter, a versatile and indispensable tool for professionals and DIY enthusiasts alike.
This compact and feature-rich device is designed to accurately measure electrical currents without the need for direct contact with live wires, ensuring both safety and convenience. Equipped with advanced True RMS technology, the DCM301 delivers precise readings even in noisy electrical environments, making it ideal for troubleshooting electrical systems in residential, commercial, and industrial settings.
With its easy-to-read, backlit LCD display and intuitive interface, the Sanwa DCM301 Clamp Meter allows users to measure AC/DC current, voltage, resistance, and continuity. Its innovative clamp design enables quick and hassle-free measurements, while the hold function freezes the displayed value for quick reference. The meter also boasts a built-in non-contact voltage detector, providing an added layer of safety by alerting users to the presence of voltage before making measurements. Compact, reliable, and packed with essential features, the Sanwa DCM301 Clamp Meter is the go-to choice for accurate and efficient electrical measurements in any application.
Meter includes one set of test leads, carrying case and instruction manual.
| Function | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| ACA | 60.00/600.0/1000A | ±(2.5%+5) | 0.01A |
| ACV | 6.000/60.00/600.0/1000V | ±(1.5%+3) | 0.001V |
| DCV | 6.000/60.00/600.0/1000V | ±(1%+3) | 0.001V |
| Resistance | 6.000k/60.00k/600.0k/6.000M/60.00MΩ | ±(2%+5) | 0.001kΩ |
| Frequency | ACV 10Hz-10kHz, ACA 10Hz-2kHz | ±(1%+5) | 0.1Hz |
| Capacitance | 60.00n/600.0n/6.000µ/60.00µ/600.0µ/6.000m/60.00mF | ±(4%+3) | 0.01nF |
| Continuity | Buzzer sounds below 30Ω Open voltage: approx. 1V or less | ||
| Detection of Electricity | Buzzer sounds, "-" is shown on LCD, and LED flickers Detects ACV and EF of approx. 90V or more (50/60Hz) |
||
| Sampling rate | Approx. 3 times/sec. |
| Bandwidth | ACA 45-400Hz ACV 45Hz-1kHz |
| Display | 6000/9999(Hz function) |
| Clamp diameter/Conductor size | Φ34mm/10×64mm |
| Battery | LR03×3 |
| Battery life | Approx. 200 hrs. |
| Size/Mass | H252×W85×D40mm/Approx. 360g |
| Safety standards | IEC61010 CAT.Ⅳ600V/CAT.Ⅲ1000V |
