Sanwa DCM2000DR Digital Clamp Meter / Multi Meter [2000A] AC/DC+True RMS
Sanwa DCM2000DR Digital Clamp Meter / Multi Meter [2000A] AC/DC+True RMS
DC/AC current measurable max. 2000A, CAT.IV 1000V
- AC/DC current measurable max. 2000A & DMM function
- True RMS
- 6000 Count Digital Display with Backlight
- Dual display shows voltage/current and its frequency
- EF (Electric Field) sensing
- VFD (Variable Frequency Drive) frequency measurement
- Low input impedance voltage measurement capable of attenuating the effects of ghost voltage
- Data hold / Range hold / Peak hold (5ms)
- Relative value
- Auto power save (34min after the last operation) (cancelable)

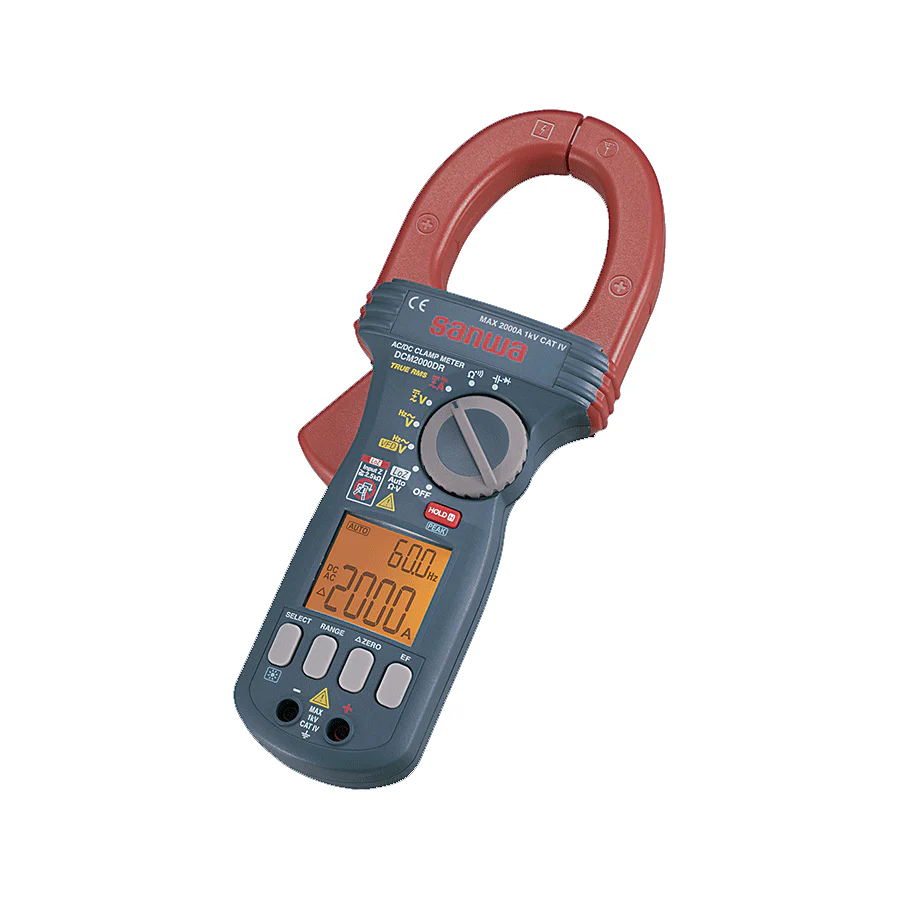

The Sanwa DCM2000DR is a digital clamp meter with digital multimeter capabilities.
The DCM2000DR is an AC/DC clamp meter/digital multimeter of the RMS value response type, designed for measurements in the range specified by IEC61010-1 CAT.IV 1000V. It is suitable for current and voltage measurements of low-voltage circuitry, electric equipment, and power supply facilities.
This instrument is capable of measuring both AC and DC currents and voltages. As the device also functions as a multimeter, it can perform a variety of functions such as measuring resistances, frequency, capacitances, performing diode tests as well as continuity tests with buzzer alarms.
The device can also measure electric field strength and features a low pass filter for VFD (Variable Frequency Drive) AC voltage measurement. The DCM2000DR has data hold, range hold and peak hold functions as well. The device is power efficient and features an auto power save feature that turns off the display after 34 minutes of inactivity (cancellable).

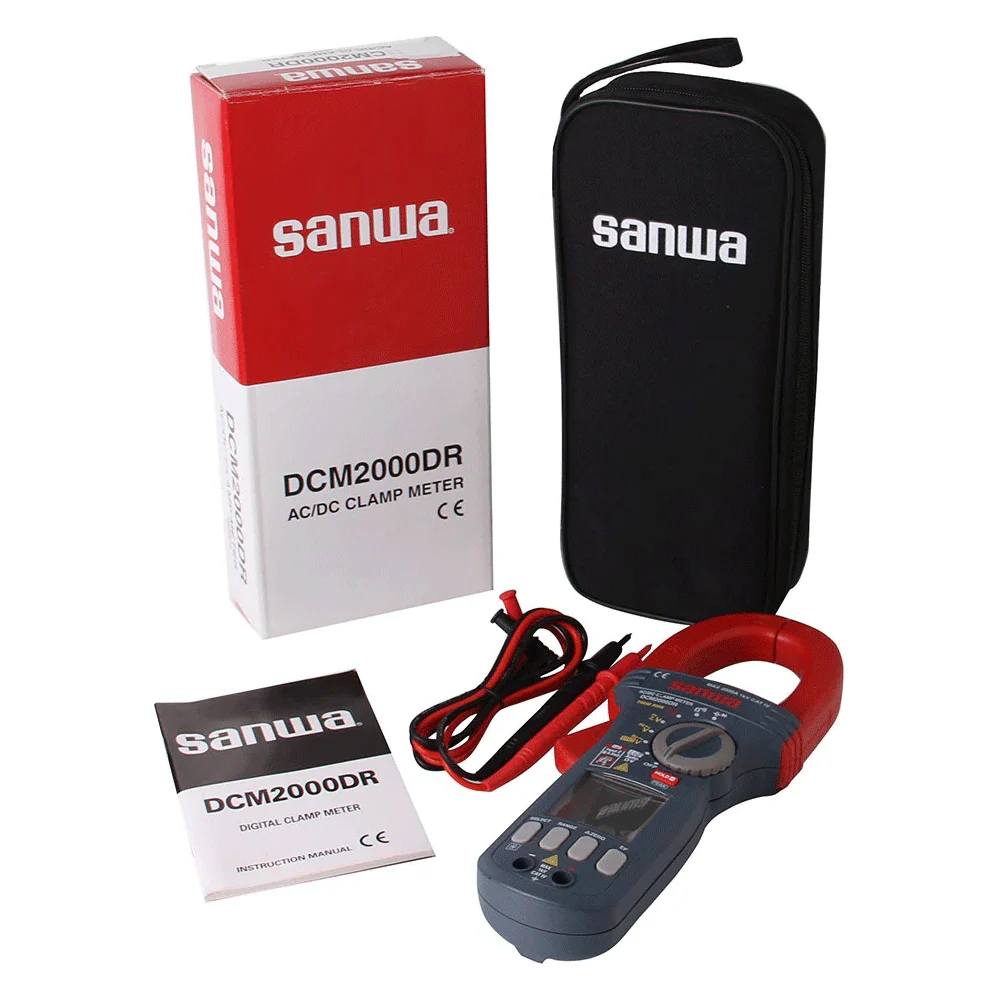

Includes meter, one set of test leads, carrying case and instructions.
| Function | Range | Accuracy | Resolution |
|---|---|---|---|
| ACA | 200.0/2000A | ±(2.0%+5) | 0.1A |
| DCA | 200.0/2000A | ±(2.0%+5) | 0.1A |
| ACV | 6.000/60.00/600.0/1000V | ±(1.2%+5) | 0.001V |
| DCV | 6.000/60.00/600.0/1000V | ±(0.5%+5) | 0.001V |
| Resistance | 600.0/6.000k/60.00k/600.0k/6.000M/40.00MΩ | ±(0.5%+5) | 0.1Ω |
| Frequency | 10～1999Hz | ±(0.1%+4) | 0.01Hz |
| Capacitance | 60n/600n/6μ/60μ/600μ/2000μF | ±(2.0%+5) | 0.01nF |
| Continuity | Buzzer sounds at below 10-200Ω Open voltage: approx. 0.5V | ||
| Diode test | Open voltage: approx. 1.8V | ||
| EF sensing | A voltage or electric field of about 60 V or more is detected. The barr graph and intermittent buzzer beeps change in three steps according to the field intensity. (50/60Hz) | ||
| Sampling rate | Approx. 5 times/sec. |
| Bandwidth | 50～400Hz |
| Display | 6000/1999（Hz) |
| Max. overload protection input | DC/AC1100V CT: DC/AC2000A |

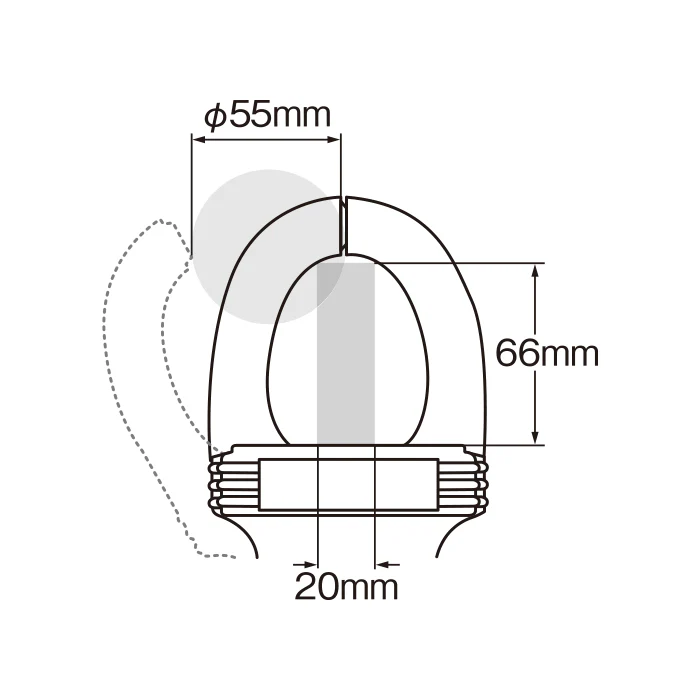

| Clamp diameter/Conductor size | Φ55mm/20x66mm |
| Battery | R6Px2 |
| Battery life | A function: Approx. 80 hrs. Functions other than A: Approx. 240 hrs. (Zinc-carbon battery/Backlight off) |
| Size/Mass | H264×W97×D43mm/Approx. 640g |
| Safety standards | IEC61010 CAT Ⅳ 1000V |
