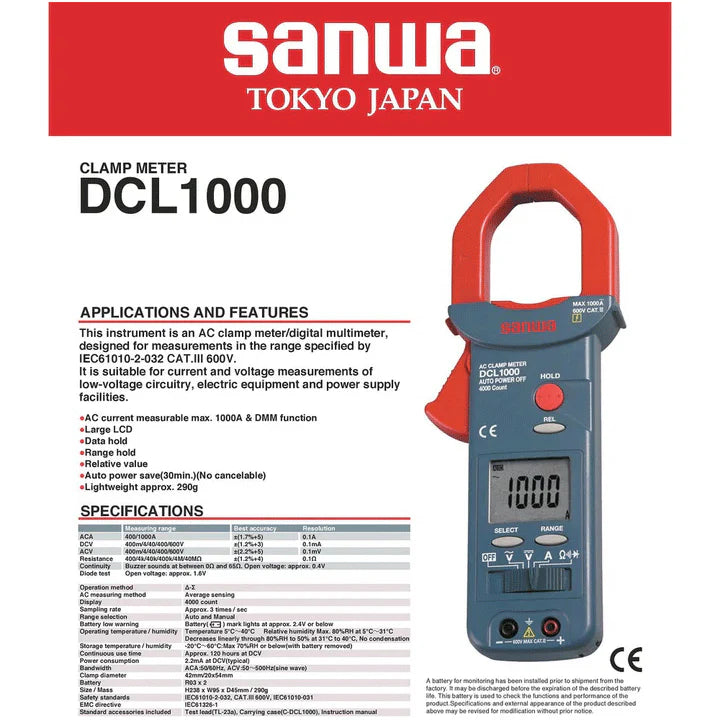

Sanwa DCL1000 Digital Clamp Multi Meter / Tester AC
₱8,629.00
Sanwa DCL1000 Digital Clamp Multi Meter / Tester AC
Large diameter CT, AC current measurable max. 1000A
- Lighter than conventional clamp meters (30 % reduction from Sanwa equivalent meters) for easy transportation.
- Large “ ” button to ensure holding of the indicated value.
- Safety design in compliance with the IEC.
- DMM function provided.
- Relative value (RELATIVE) measuring function provided
-
Made in Japan
Introducing the Sanwa DCM301 Clamp Meter, a versatile and indispensable tool for professionals and DIY enthusiasts alike.
This compact and feature-rich device is designed to accurately measure electrical currents without the need for direct contact with live wires, ensuring both safety and convenience. Equipped with advanced True RMS technology, the DCM301 delivers precise readings even in noisy electrical environments, making it ideal for troubleshooting electrical systems in residential, commercial, and industrial settings.
With its easy-to-read, backlit LCD display and intuitive interface, the Sanwa DCM301 Clamp Meter allows users to measure AC/DC current, voltage, resistance, and continuity. Its innovative clamp design enables quick and hassle-free measurements, while the hold function freezes the displayed value for quick reference. The meter also boasts a built-in non-contact voltage detector, providing an added layer of safety by alerting users to the presence of voltage before making measurements. Compact, reliable, and packed with essential features, the Sanwa DCM301 Clamp Meter is the go-to choice for accurate and efficient electrical measurements in any application.
This is an AC clamp meter designed for the IEC measurement category CAT. III 600 V and is suitable for measurement of AC current of electrical equipment and power supply facilities.

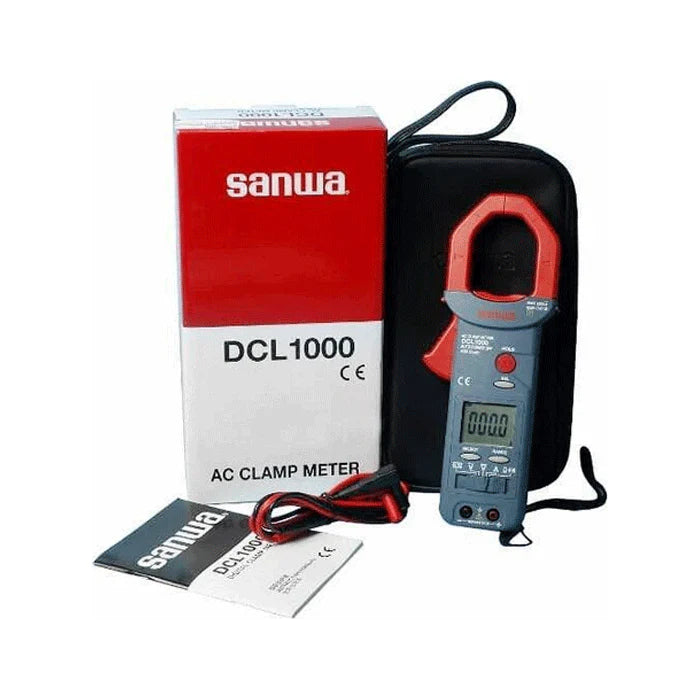

Meter includes one set of test leads, carrying case and instruction manual.
| Function | Measuring range | Best accuracy | Resolution |
| ACA | 400/1000A | ±(1.7%+5) | 0.1A |
| DCV | 400m/4/40/400/600V | ±(1.2%+3) | 0.1mV |
| ACV | 400m/4/40/400/600V | ±(2.2%+5) | 0.1mV |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(1.2%+4) | 0.1Ω |
| Continuity | Buzzer sounds at between 0Ω and 65Ω(±35Ω)Open voltage: approx. 0.4V | ||
| Diode test | Open voltage: approx. 1.6V |
| Sampling rate | 3 times/sec. |
| Bandwidth | ACA 50/60Hz (sine wave) ACV 50-500Hz (sine wave) |
| Display | 4000 |

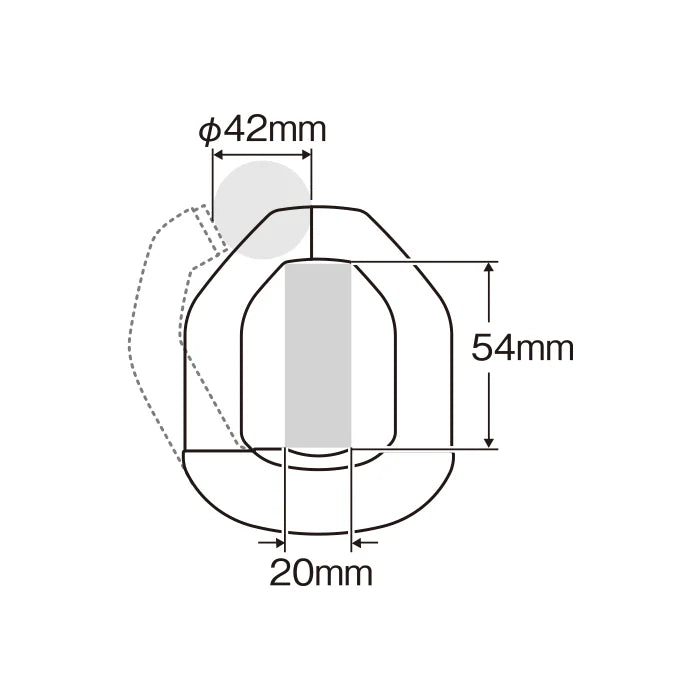

| Clamp diameter/Conductor size | Φ42mm/20×54mm |
| Battery | R03×2 |
| Battery life | Approx. 120 hrs. at DCV (Zinc-carbon battery) |
| Size/Mass | H238×W95×D45mm/Approx.290g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
