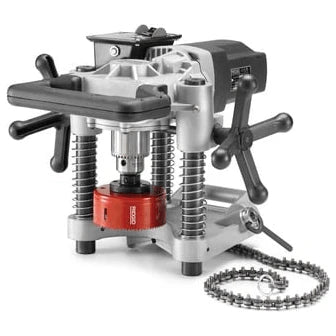

Ridgid HC-450 Pipe Hole Cutting Tool / Drill Press
₱270,250.00
Ridgid HC-450 Pipe Hole Cutting Tool / Drill Press
The RIDGID® Model HC-450 is engineered for continuous 1⁄4" (6 mm) to 4 3⁄4" (120 mm) hole cutting in and up to 8" (203 mm) diameter steel unpressurized pipe. The built-in level ensures line up for multiple holes when branching lines using Mechanical T®, Vic-O-Let™ fittings or welded saddles. The HC-450 is ideal for mechanical, industrial maintenance and fire protection contractors since it cuts holes into a wide variety of pipe materials. No off-the-shelf drill-based hole cutter compares in performance or durability to the rugged purposed-built Model 450.
- Engineered for continuous dry or oiled hole cutting.
- Dual-side controls provide easy operation.
- GFCI and a built-in breaker for operator protection.
- Two carrying handles ease mounting and alignment.
- Built-in level for multiple hole alignment.
Specifications
| Hole Cutting Capacity | Up to 4 3/4" (120 mm) (Sch 10, 40 and 80 Pipe Dia.) |
| Pipe Diameter Mounting Range | 1 1/4" to 8" |
| Motor | Universal, 115V, 50-60Hz |
| Output Speed | 110 RPM (no load) |
| Chuck Size | 1/16'' - 5/8'' |
| Arbors | up to 1⁄8'' (3 mm) - 5/8'' (16 mm) |
| Height | 12 5/8" |
| Length | 17" |
| Width | 17" |
| Approved by CSA to CSA and UL standards, 115V/230V |
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
WEIGHT | |
| LB. | KG | |||
| 57597 | HC-450 | 4 3/4" Hole Cutting Tool, 230V, 50/60 Hz | 42 | 19 |
Note: The HC-450 is not a hot tapping tool.
|
CATALOG NUMBER
|
Price
|
| 57597 | 270,250.00 |
Accessories
| Catalog Number | Description | Price |
| 84427 | Case, Carrying Case HC300/450 | 22,250.00 |
| 77017 | Chuck Key | 1,400.00 |
