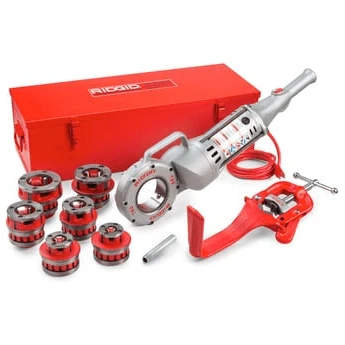

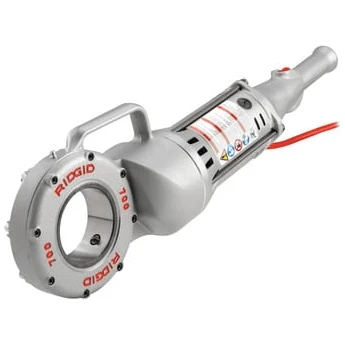

Ridgid 700 Handheld Power Drive Electric Pipe Threader
₱150,000.00
Ridgid 700 Handheld Power Drive Electric Pipe Threader
The Model 418's durable pump assembly and heavy-duty reservoir are designed to increase productivity.
- Heavy-duty hand-held Power Drive.
- Designed for RIDGID® Model 12-R die heads. Other RIDGID die heads (OO-R, OO-RB, 11-R) can be used using adapters. It can also be used with 258/258XL pipe cutters.
Specifications
- Capacity – 1⁄8"-2"Pipe(6-50mm).1⁄4 "- 1" (8 - 25 mm) Bolt (using 00-RB Die Heads)
- Motor – Single Phase, Universal
- Weight – 25 lbs. (11 kg) Power Drive only
- Length – 28 1⁄4" (71.7 cm)
- Switch – Double-throw reversible
- Gear Head – Spur gear reduction face gear drive. Spring-loaded adapter pawls. Hardened steel spindle gear
- Body – Cast aluminum
- Die Heads – 12-R. Other Die Heads with adaptors: 00-R, 00-RB, 11-R
|
CATALOG NUMBER |
DESCRIPTION |
RPM |
VOLTAGE (V) |
AMP DRAW (A) |
POWER |
Weight (kg) |
Price |
| 41940 | 700 Power Drive | 28 | 230 5060Hz | 6 | 1/2 HP | 11 | 150,000.00 |
Accessories
|
CATALOG NUMBER |
Description | Price |
| 10883 | Oiler with One Gallon Premium Thread Cutting Oil | 24,400.00 |
| 42605 | Adapter for 00-R and 00-RB | 19,800.00 |
| 42610 | Adapter for 0-R | 9,000.00 |
| 42615 | Adapter for 11-R and R-200 (1/8''- 1 ¼'') | 15,600.00 |
| 42620 | Adapter for 111-R | 9,100.00 |
| 42625 | Square Drive Adapter - 15/16" | 15,300.00 |
| 42950 | Metal Carrying Case | 12,600.00 |
