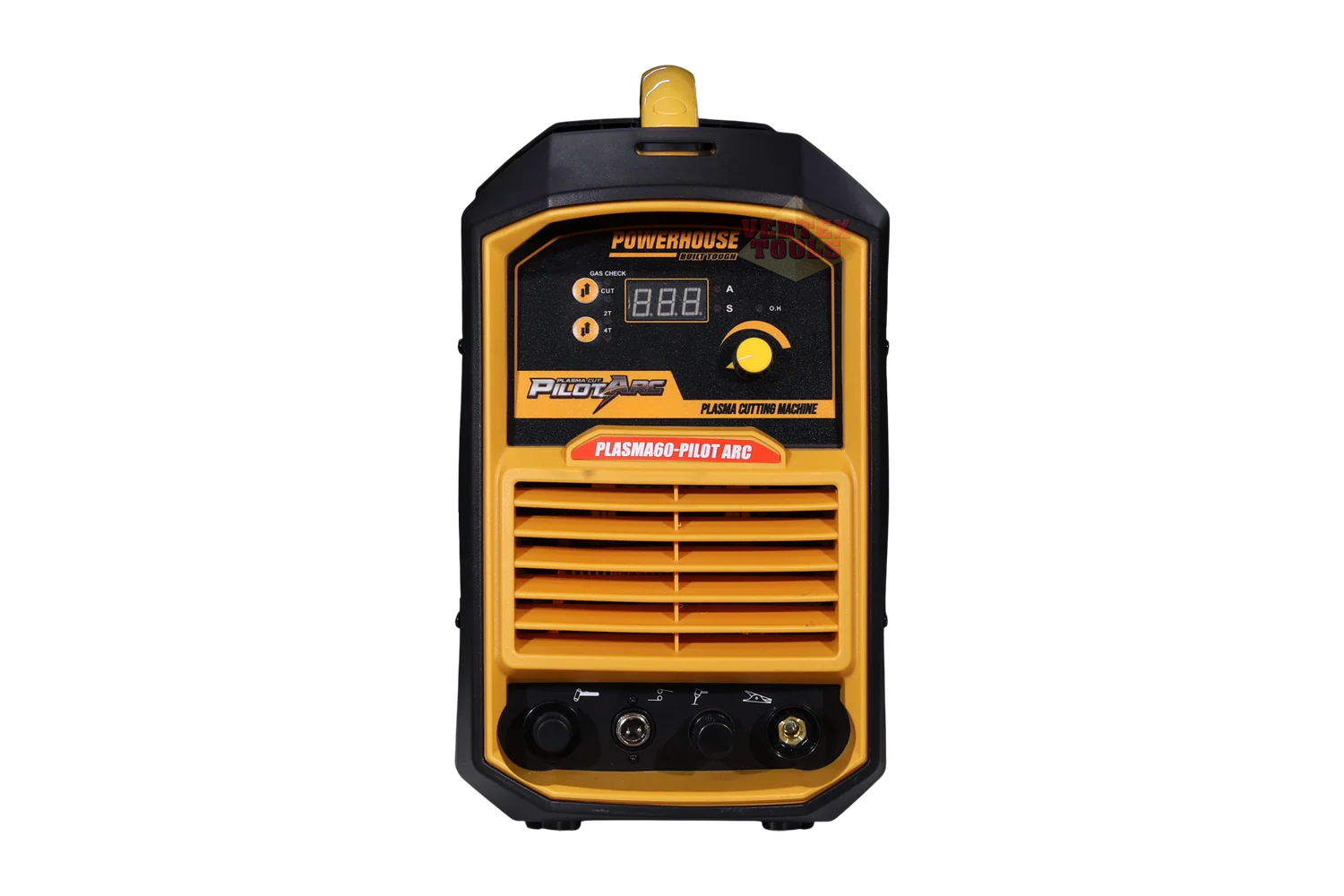

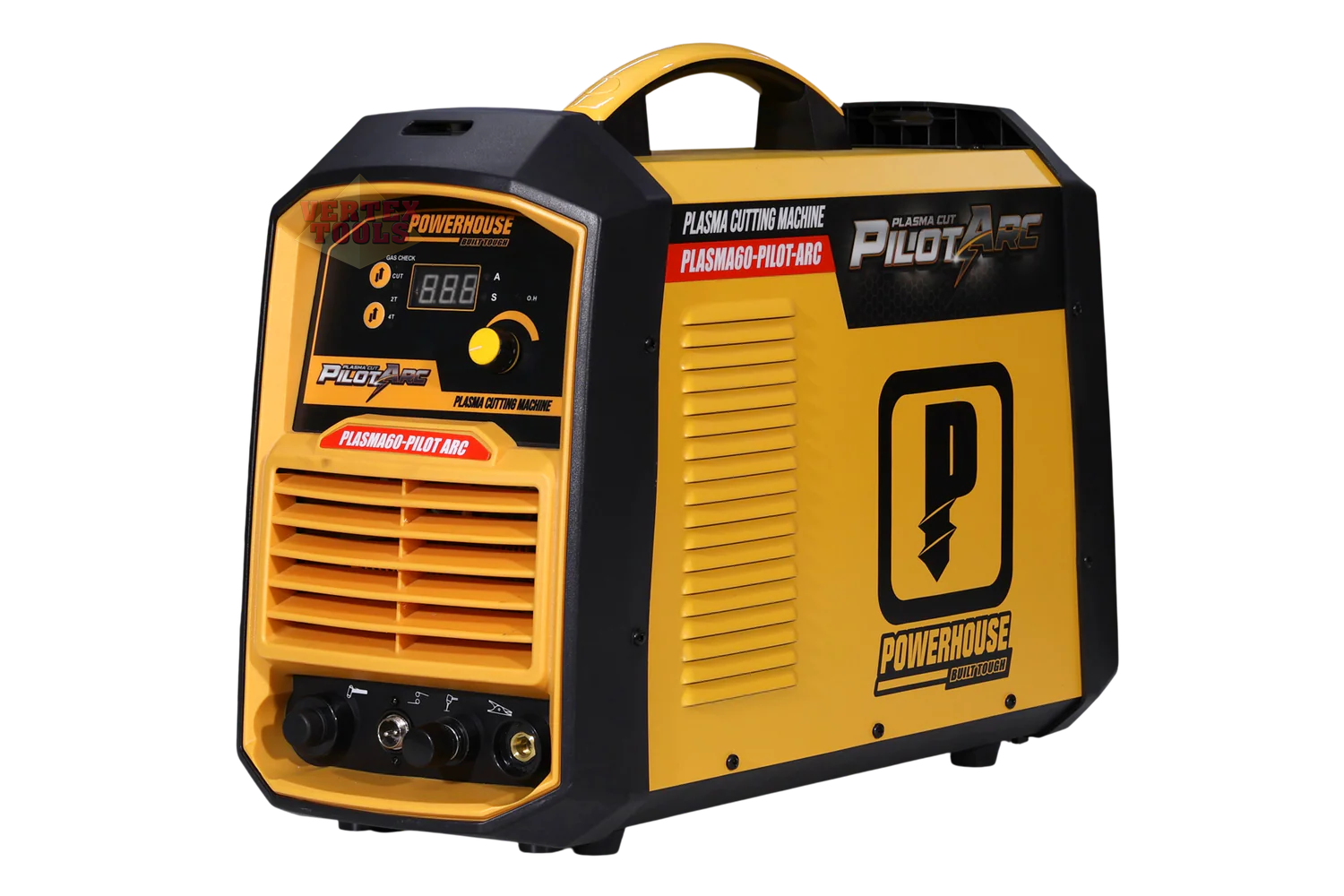

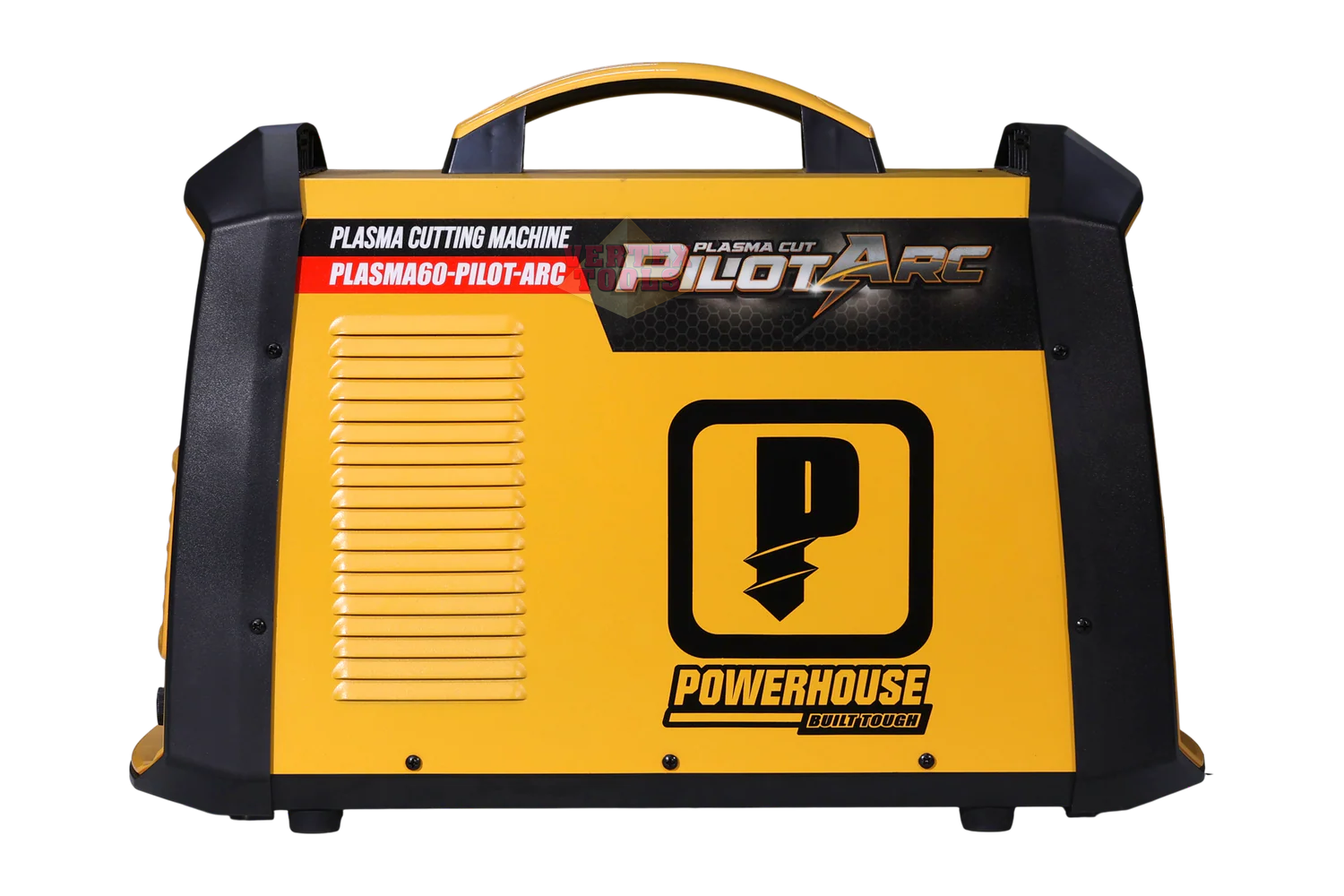

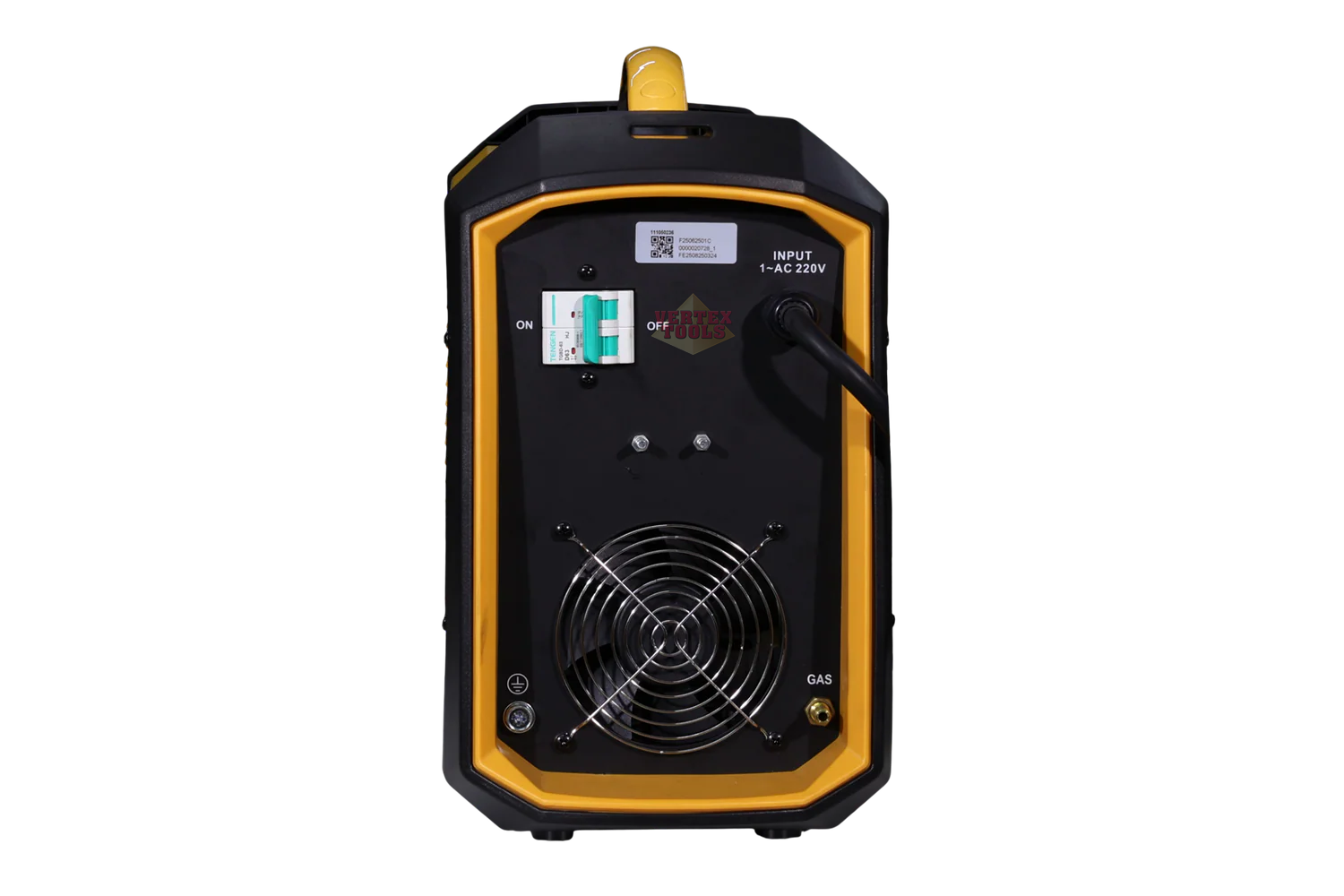

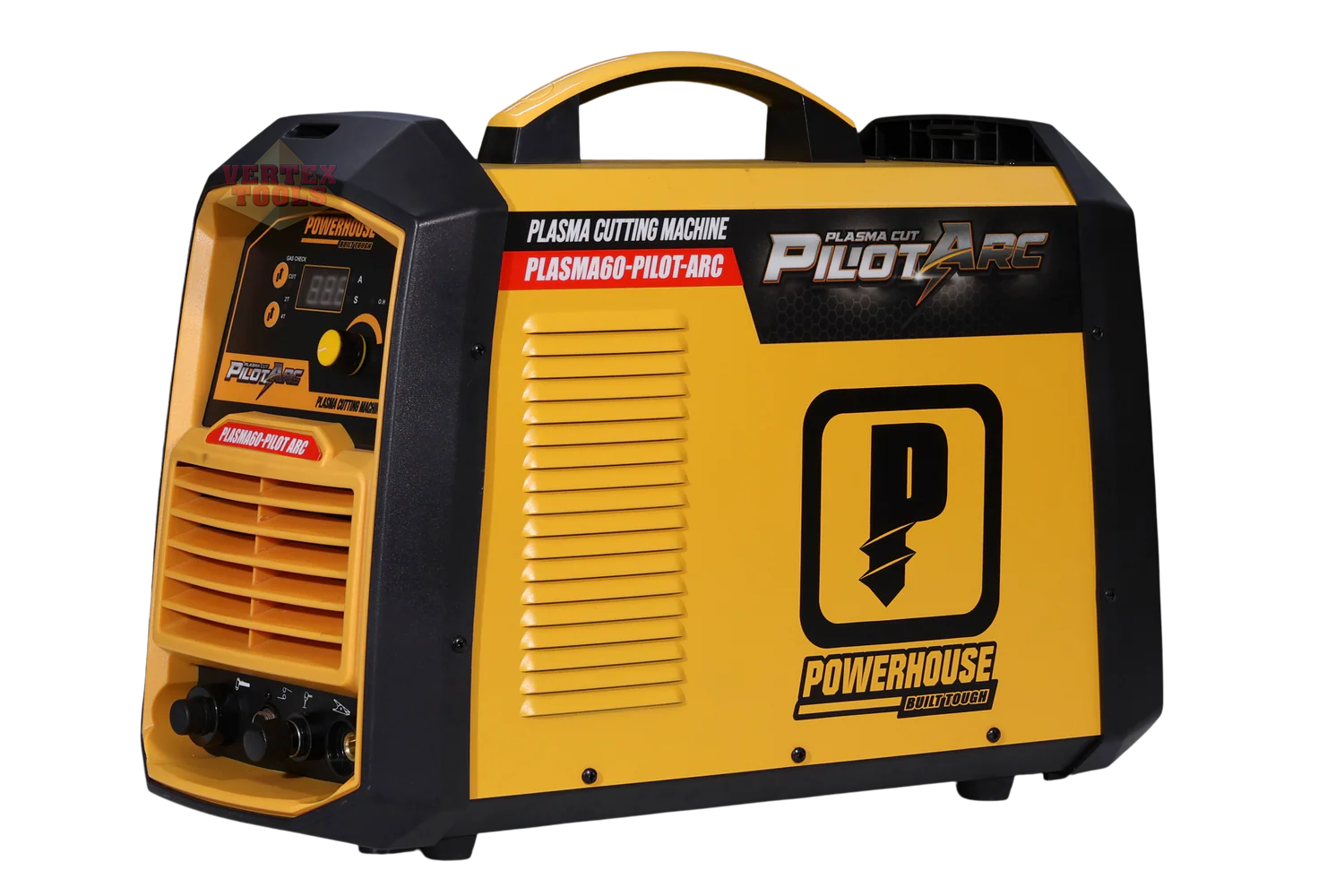

Powerhouse Cut 60 Pilot Arc Inverter Plasma Cutter
₱23,850.00
Specifications:
- Input Voltage: AC 220V±15% Single Phase
- Output Current Range: 20A - 60A
- Rated Output Voltage: 104V (cutting arc)
- Duty Cycle @40°C: 60% @60A
- No-Load Voltage: 270V (approx.)
- Arc Start Type: High-Frequency, Pilot Arc
- Cut Capacity (clean): 14mm
- Severance Capacity (Rough): 20mm
- Air Pressure Requirement: 3.5-4.5 bar
- Air Flow Requirement: 150 L/min
- Protection Class: IP21S
- Insulation Class: F
- Weight: 17kg
- Dimension (mm): 665x290x460
- Breaker Size: 60A Above
- Extension Cable Size: #12-AWG (4.0mm²)
- Compressor Tank Capacity: 60-90 Liters Above
Accessories:
- Earth Clamp
- Torch
- Air Regulator
- Steel Brush
- Welding Mask
- Manual
Air Compressor not included.
Picture is for reference only, actual product may vary.
