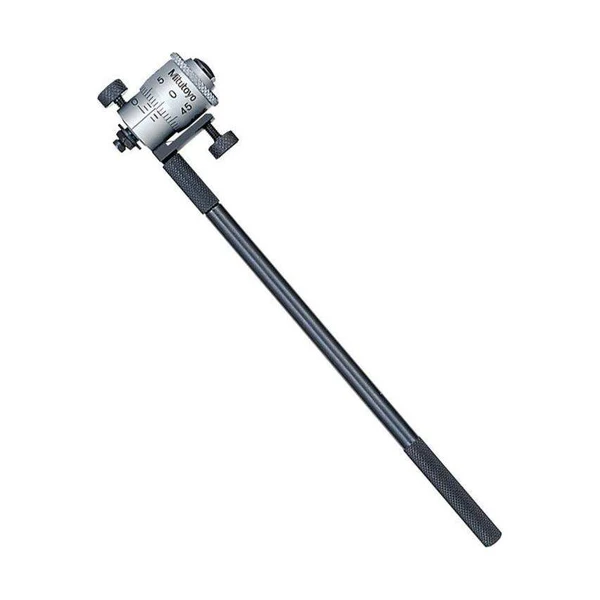

Mitutoyo Inside Micrometer, Series 141 (Interchangeable Rod Type)
₱9,200.00
Mitutoyo Inside Micrometer, Series 141 (Interchangeable rod type)
- Wide range of ID measurements with interchangeable rods.
- Each interchangeable rod is marked with its measuring range.
- The sizes of interchangeable rods can be adjusted with spacing collars.
- Both micrometer head and furnished rods are satin-chrome finished throughout.
- Supplied in fitted plastic case. Over 1000mm / 40” supplied in wooden case.
Technical Data
Metric Model
Accuracy: ±(6+L/50)μm
L=Maximum measuring length (mm)
Fraction rounded up
Inch Model
Accuracy: ±{.00024+ (.00004xR/2)}"
R=Maximum measuring length (inch)
Fraction rounded up
Graduation: 0.01mm or .001"
| Inside Micrometer, Series 141 (Interchangeable Rod Type) | ||||
| Code | Model | Range | Graduation | Price |
| Metric | ||||
| 141-101 | IMS-50 | 25-50mm | 0.01mm | ₱9,200.00 |
| 141-205 (105) | IMS-200R | 50-200mm | 0.01mm | ₱10,700.00 |
| 141-206 (106) | IMS-300R | 50-300mm | 0.01mm | ₱13,800.00 |
| 141-117 | 200-500mm | 0.01mm | ₱16,400.00 | |
| 141-118 | IMS-1000 | 200-1000mm | 0.01mm | ₱29,200.00 |
| Inches | ||||
| 141-102 | IMS-2 | 1-2" | 0.001" | ₱9,700.00 |
