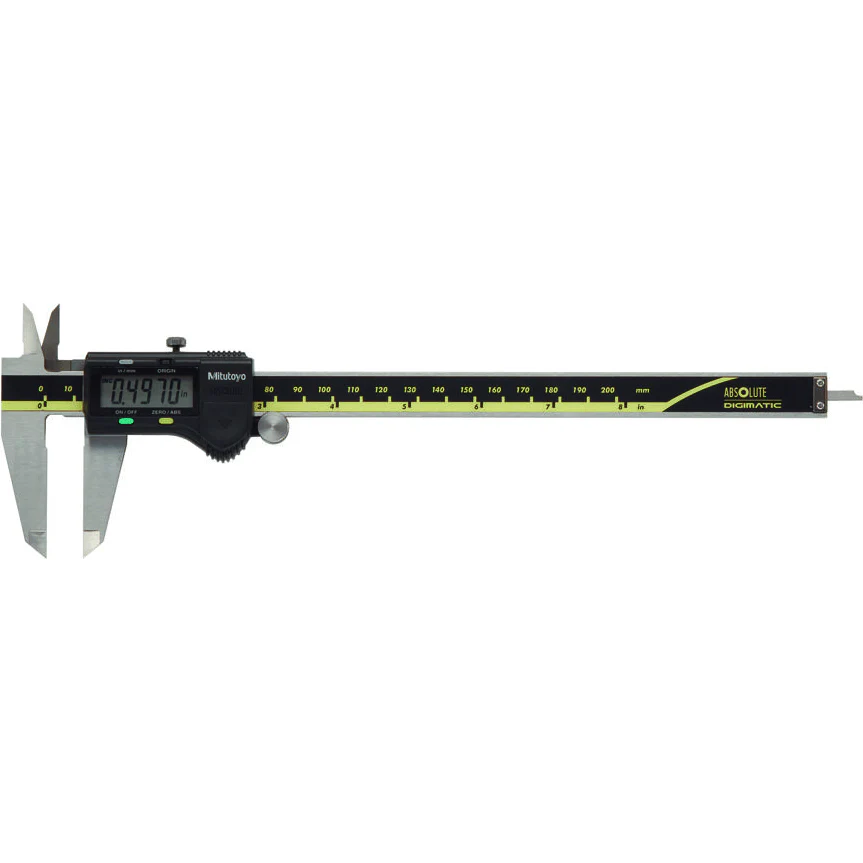

Mitutoyo CD-15C Digimatic (Digital) Caliper 'MyCAL ABSOLUTE' 150mm [500-151-30]

Name: Mitutoyo CD-15C Digimatic (Digital) Caliper 'MyCAL ABSOLUTE' 150mm [500-151-30]
Brand: Mitutoyo
Price: 11610.0 PHP
Availability: InStock

₱11,610.00 ₱12,900.00

Mitutoyo CD-15C Digimatic (Digital) Caliper 'MyCAL ABSOLUTE' 150mm
[500-151-30]
SERIES 500 — with exclusive ABSOLUTE Encoder Technology

A built-in ABS (absolute) scale means that these calipers are ready to use immediately
after power-on without origin resetting - just like using a Vernier caliper.

Range: 0-150mm (Metric)
Graduation: 0.01mm

The 500-151-30 is an Absolute Digimatic Caliper equipped with the electromagnetic induction type absolute encoder and AOS (advanced onsite sensor) applied for ABS coolant-proof calipers. The slider provides smooth, stable, and comfortable operation. A battery life of approximately 3.5 years has been achieved under normal use through the adoption of Mitutoyo's ABSOLUTE scale. The carbide-tipped jaw model is ideally suited to the measurement of rough-machined work-pieces, castings, and grindstones. The data output function allows integration into statistical process control and measurement systems. The ABS (absolute) measurement function enables absolute-mode measurement to be started without any zero-setting after switch-ON. The absolute origin position can be set or reset with the ORIGIN switch at any time.

Step-measurement capable
Slider configuration features an ergonomic, thumb-friendly shape
Alleviation of fatigue with the high-contrast LCD
Carbide-tipped jaws for outside measurement

Applications

Industrial, Test & Measurement

Features

An ABSOLUTE electromagnetic induction linear encoder system is incorporated (except for O - 300 mm I O - 1 2 inch models).
New ergonomic design with finger rest.
The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point).

Large and clear LCD readout.
Smooth slider movement makes for
comfortable operation.
1 8,000 hours battery life.
Allows step measurement.
Carbide-tipped jaw calipers are optimal
for rough finished parts, castings, grinding
stones, etc.
Allows integration into statistical process
control and measurement systems for models
with measurement data output connector.

Technical Data
Accuracy: ±0.02 mm (s200 mm), ±0.03 mm (s300 mm)
(excluding quantizing error)
Resolution: 0.01 mm or 0.0005 in I 0.01 mm
Repeatability 0.01 mm
Display: LCD
Scale type*: ABSOLUTE electromagnetic induction linear
encoder
*ABSOLUTE electrostatic capacity static linear encoder for
0 - 300 mm I 0 - 12 inch models.
Max. response speed: Unlimited
Battery: SR44 (1 pc), 938882,
for initial operational checks (standard accessory)
Battery life: Approx. 5 years under normal use (1 8,000
hours for continuous use)

Function

Absolute measurement: After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The Absolute origin position can be changed by the ORIGIN button.

Incremental measurement: Display can be set to zero at any arbitrary position for comparative measurements

Low-voltage alert: If the battery voltage becomes low, a "B" appears in the display to alert the user before measurement is no longer possible. A battery change advisory alert precedes this alert.

Data output By using the connecting cable (option), measurement data can be output.

Data hold: By using the data hold unit (option), the displayed value can be held. This cannot be used with the data output function.
