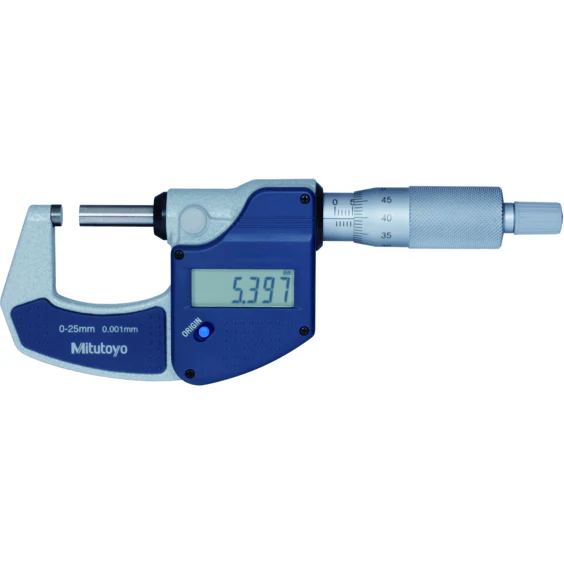

Mitutoyo 293-821-30 [Digimatic] Digital Outside Micrometer 25mm (Ratchet Stop)
₱11,900.00
Mitutoyo 293-821-30 [Digimatic] Digital Outside Micrometer 25mm (Ratchet Stop)
0-25mm, w/o Data Output
| Code | Model | Range | Resolution |
| IMetric | |||
| 293-821 | W/ Ratchet Stop | 0-25mm | 0.001mm |
- A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
Technical Data
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
0 - 25 mm
|
| Digital step: |
0.001 mm
|
| Max. Permissible Error J MPE: |
±2 µm
|
| Flatness: |
0.3 µm
|
| Parallelism: |
1 µm
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring spindle: |
ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5.0 - 10.0 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years
|
| Delivered: |
Including box, key, 1 battery,
certificate of inspection |
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| Mass: |
275 g
|
