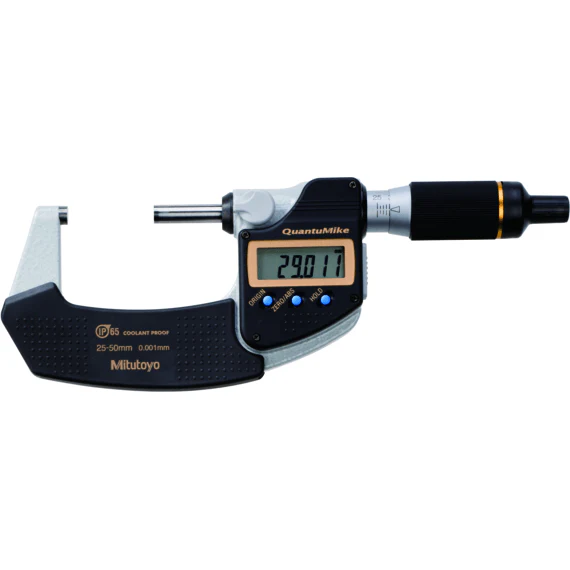

Mitutoyo 293-141-30 Digital Micrometer 25-50mm (Quantumike)
₱19,890.00
Mitutoyo 293-141-30 Digital Micrometer 25-50mm (Quantumike)
IP65 with 2mm/rev Spindle Speed (With SPC Data Output)
This is an IP65 micrometer offering movement four times as fast as a standard micrometer. It presents you with the following benefits:

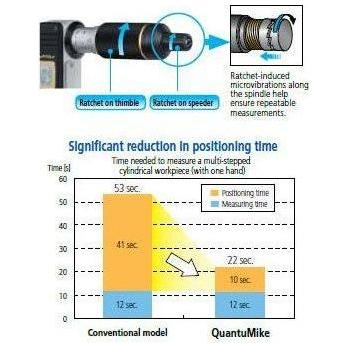

- Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
- Extraordinary battery life of 2 years
- Outstanding accuracy

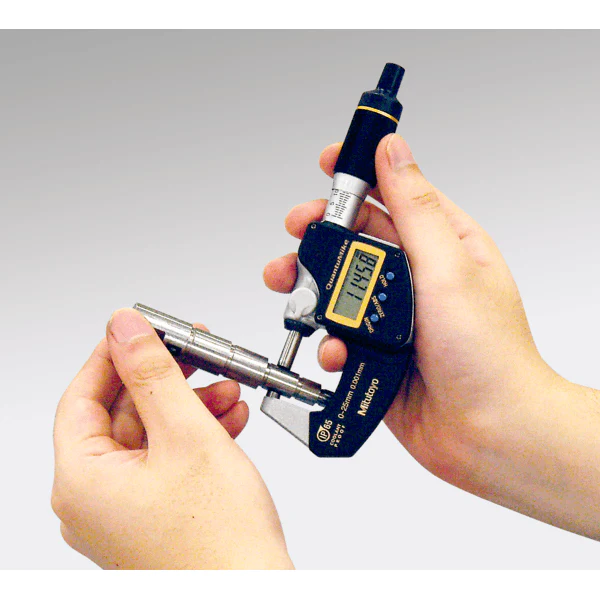

- Ratched thimble mechanism ensures easy single-handed or stand operation.

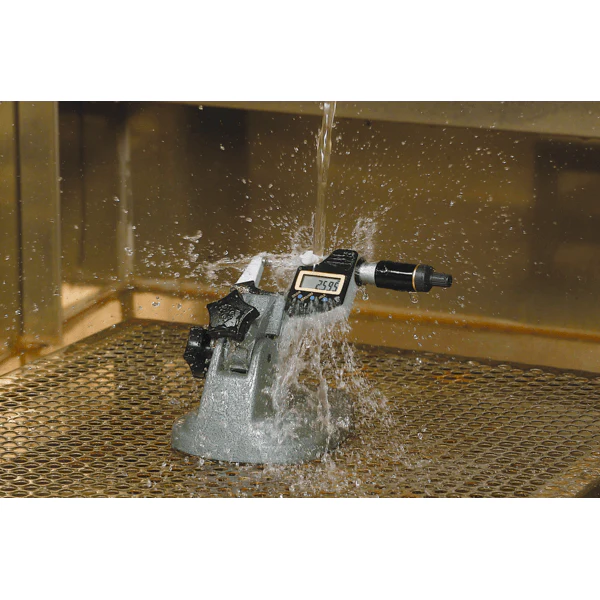

- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
25 - 50 mm
|
| Digital step: |
0.001 mm
|
| Max. Permissible Error J MPE: |
±1 µm
|
| Flatness: |
0.3 µm
|
| Parallelism: |
1 µm
|
| Data output: |
Yes
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring spindle: |
With spindle lock, ø6.35mm, spindle pitch 2 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø19.3 mm
|
| Measuring force: |
7 - 12 N
|
| Power supply: |
1 battery SR44
|
| Battery life: |
Approx. 2.4 years
|
| Delivered: |
Including box, key, 1 battery, setting standard (from 25 mm upward)
certificate of inspection (0-50 mm range) |
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| Mass: |
325 g
|
