Meiho Hand Pallet Truck (Normal Type)
₱16,000.00
Meiho Hand Pallet Truck (Normal Type)
| Model | Wheel type | Price |
| CBY-AC 2.5 T | w/ Nylon wheel | ₱16,000.00 |
| CBY-AC 2.5 T | w/ PU wheel | ₱17,000.00 |
| CBY-AC 3.0 T | w/ Nylon wheel | ₱17,500.00 |
| CBY-AC 3.0 T | w/ PU wheel | ₱18,000.00 |
| CBY-AC 5.0 T | w/ Nylon wheel | ₱43,000.00 |
Size: 1220 x 685 x 85mm
| Model | CBY-AC 2.0 | CBY-AC 2.5 | CBY-AC 3.0 | CBY-AC5.0 |
|---|---|---|---|---|
| Capacity | 2000 | 2500 | 3000 | 5000 |
| MIn. fork Height (mm) | 85 | 85 | 85 | 85 |
| Max. fork Height (mm) | 175/195/185 | 175/195/185 | 175/195/185 | 175/195/185 |
| Lifting Height (mm) | 110 | 110 | 110 | 110 |
| Fork Length (mm) | 1220 | 1220 | 1220 | 1220 |
| Single fork width (mm) | 160 | 160 | 160 | 160 |
| Width Overall forks (mm) | 685 | 685 | 685 | 685 |
| Fork wheel-single (mm) | 80x93x74x93 | 80x93x74x93 | 80x93x74x93 | 80x93x74x93 |
| Fork wheel-tandem (mm) | 80x70 | 80x70 | 80x70 | 80x70 |
| Steering wheel (mm) | 180x50 | 180x50 | 180x50 | 180x52 |
| Self-weight (kg) | 73-92 | |||
| Wheel | PU/Nylon | |||

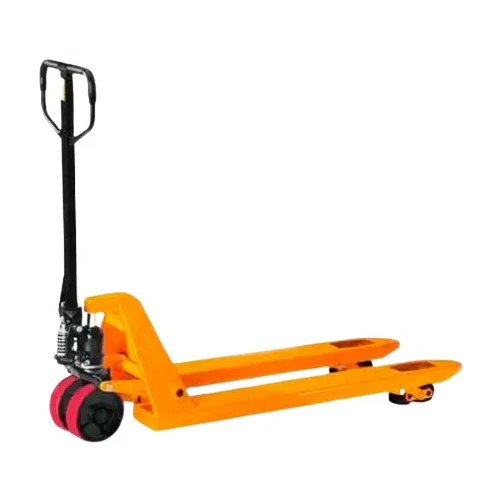

Picture is for reference only. Actual item may vary.
