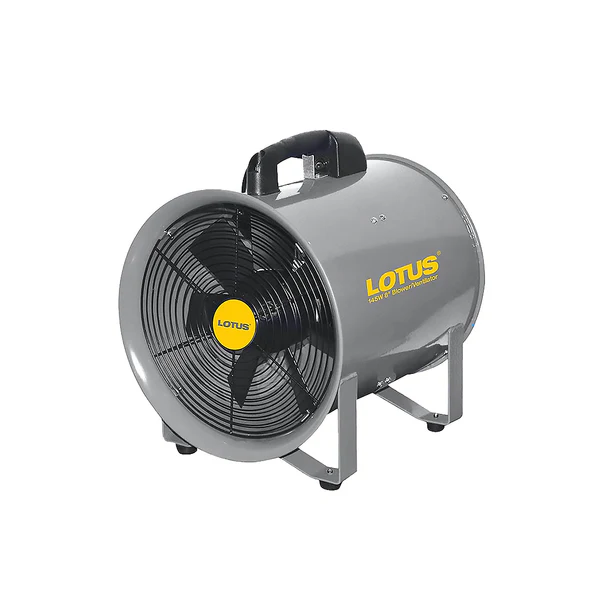

Lotus Blower / Ventilator Fan
The Lotus Blower / Ventilator Fan is a high-speed ventilation solution designed for efficient air circulation in workshops, commercial spaces, and industrial environments. Built with durable components and consistent performance output, it delivers strong airflow for improved ventilation and air exchange.
Key Benefits
- High air volume output for efficient ventilation performance
- Durable construction suitable for continuous operation
- Multiple size options for flexible installation requirements
Product Overview
The Lotus ventilator fan series is engineered to provide reliable airflow with stable speed and low maintenance requirements. Operating at 2850 RPM, it delivers consistent air movement suitable for removing heat, fumes, and stale air in enclosed spaces.
Available in 8”, 10”, and 12” sizes, this blower fan supports a wide range of ventilation needs, from small rooms to larger workshop and industrial environments.
Ideal Applications
- Workshop and warehouse ventilation
- Commercial and industrial air circulation
- Exhaust and fresh air exchange systems
Technical Specifications – LT20SHX (8” / 200mm)
| Power | 145 W |
| Voltage | 220–240 V |
| Frequency | 50/60 Hz |
| Cord | 0.50 mm² |
| Switch | Single |
| Size | 8” (200 mm) |
| Air Volume | 25 m³/min |
| No Load Speed | 2850 RPM |
| Weight | 6 kgs |
Technical Specifications – LT25SHX (10” / 250mm)
| Power | 200 W |
| Voltage | 220–240 V |
| Frequency | 50/60 Hz |
| Cord | 0.50 mm² |
| Switch | Single |
| Size | 10” (250 mm) |
| Air Volume | 43 m³/min |
| No Load Speed | 2850 RPM |
| Weight | 8 kgs |
Technical Specifications – LT30SHX (12” / 300mm)
| Power | 330 W |
| Voltage | 220–240 V |
| Frequency | 50/60 Hz |
| Cord | 0.50 mm² |
| Switch | Single |
| Size | 12” (300 mm) |
| Air Volume | 65 m³/min |
| No Load Speed | 2850 RPM |
| Weight | 9.5 kgs |
