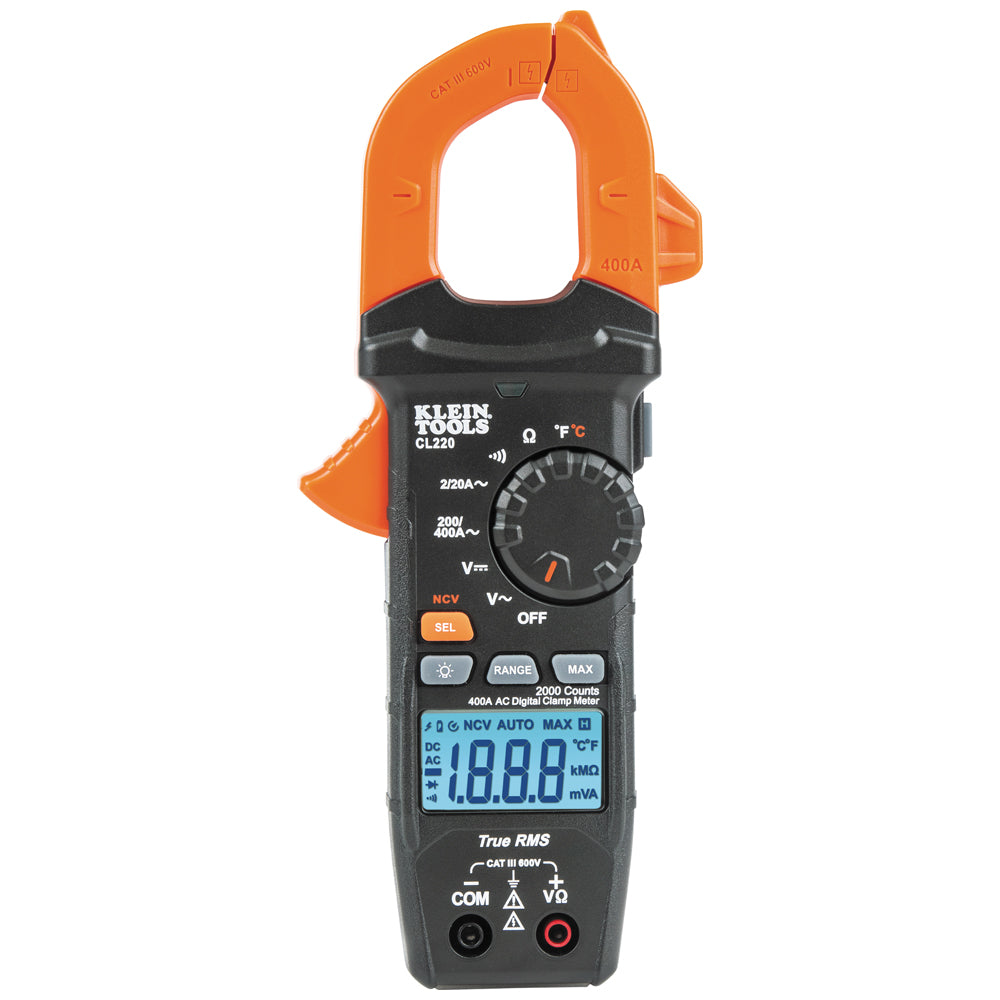

Klein USA CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
₱5,500.00
| Type | Auto Ranging TRMS Clamp with Temperature |
| Application | Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple |
| Special Features | Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature |
| Material | ABS/Electronics |
| Batteries | 3 x AAA |
| Auto-Power Off | Yes |
| Jaw Size | 1.6'' (4.1 cm) |
| Drop Protection | 6.6' (2 m) |
| Display | 2000 Count Backlit LCD |
| Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature |
| Voltage | 600 V AC/DC |
| Current | 400 A AC |
| Ohms (Resistance) | 20 MΩ |
| AC Voltage | 600 V |
| DC Voltage | 600 V |
| DC Polarity Indicator | Yes |
| Temperature Range | -40° - 1832°F (-40° - 1000°C) |
| Standard | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |
| Included | Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
| Overall Length | 8.45'' (21.5 cm) |
| Overall Height | 1.5'' (3.8 cm) |
| Overall Width | 3.5'' (8.9 cm) |
| Weight | 11 oz (314 g) |
| UPC | 092644692857 |
HIGHLIGHTS:
The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
FEATURES:
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Measures temperature with a K-Type thermocouple probe
- Auto-Range, Hold, Data Hold, and Max value
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
