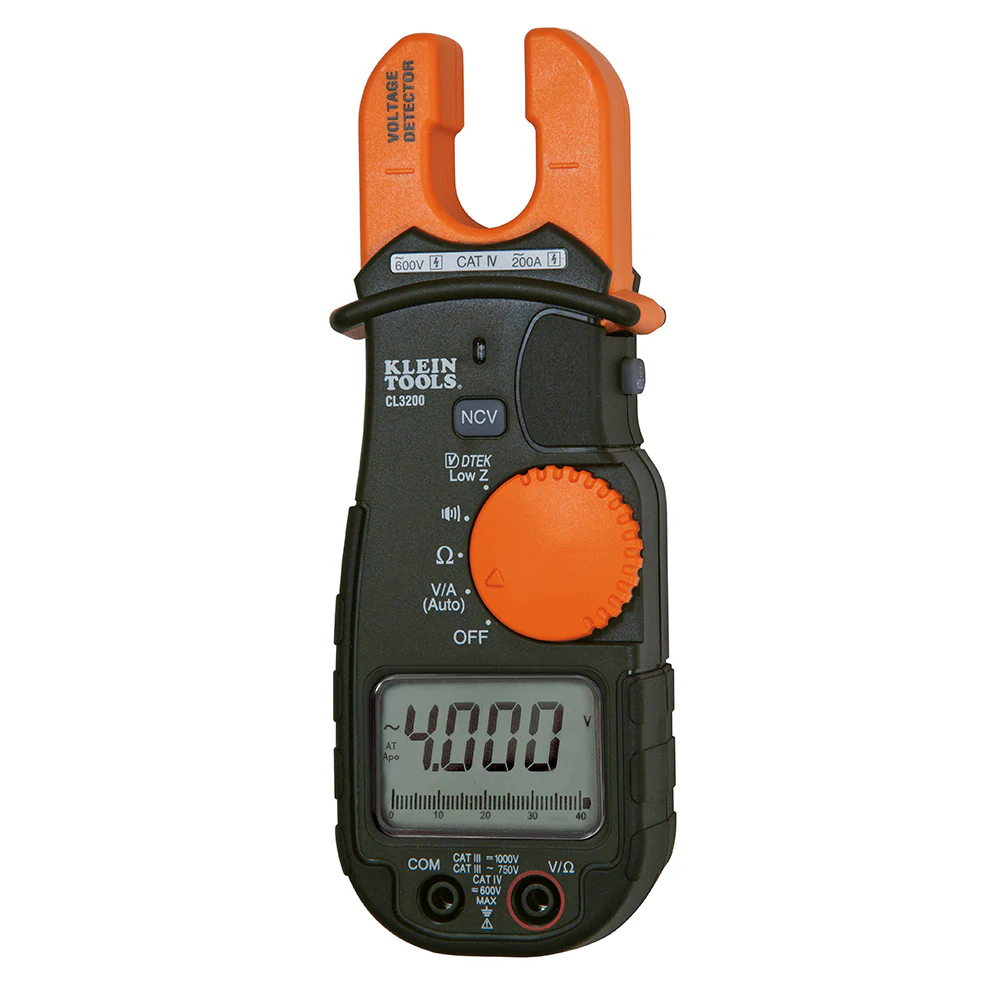

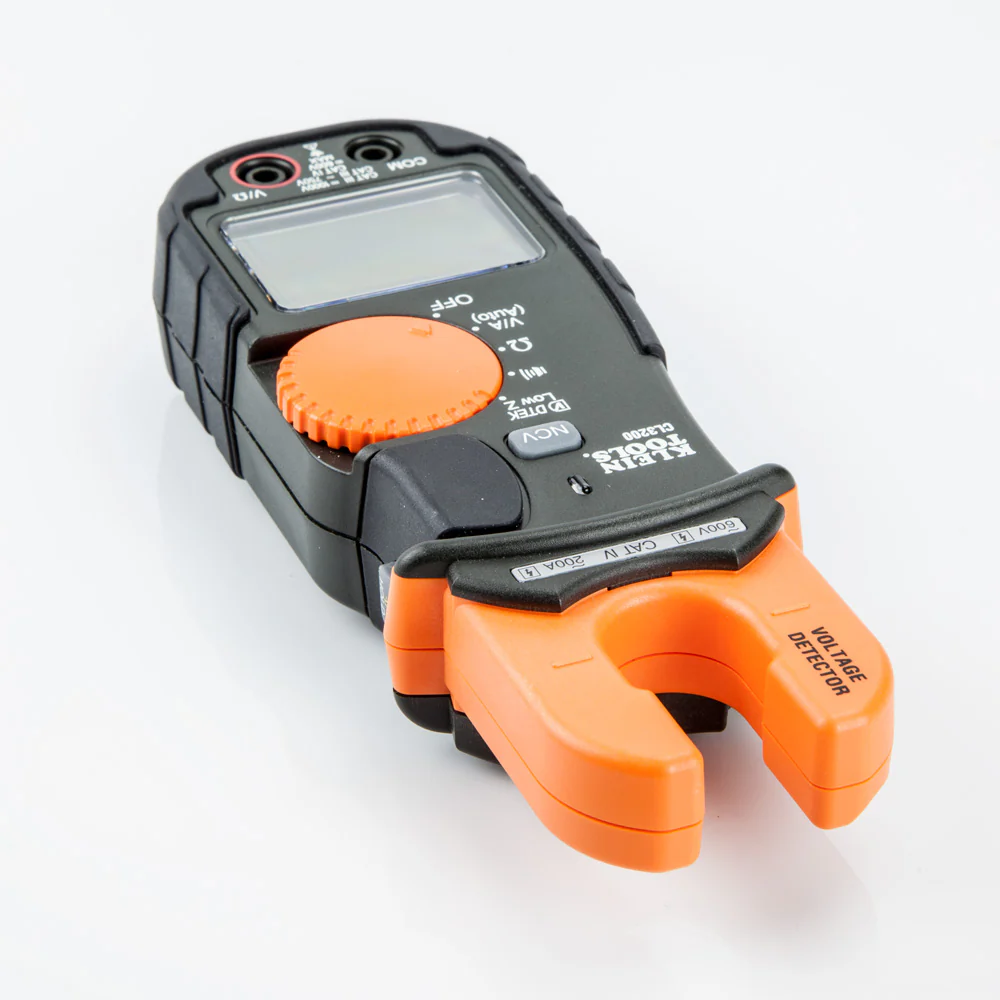

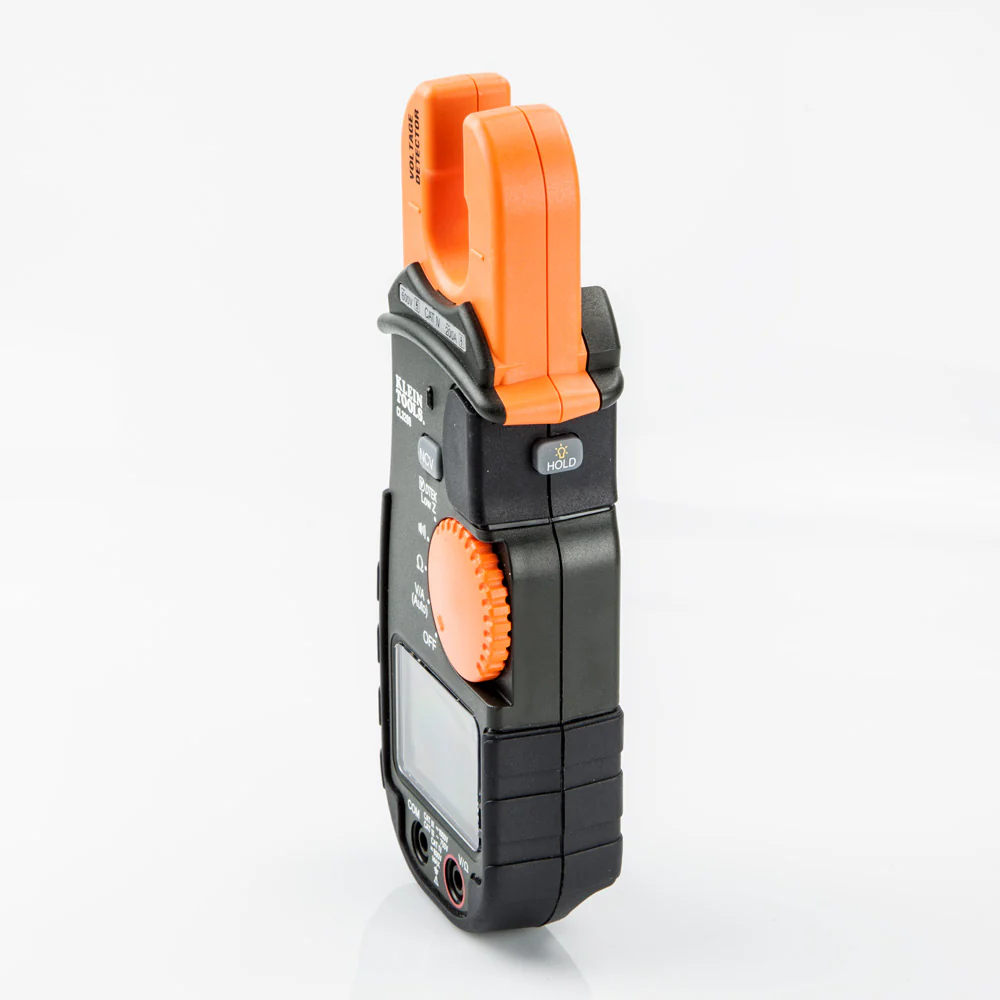

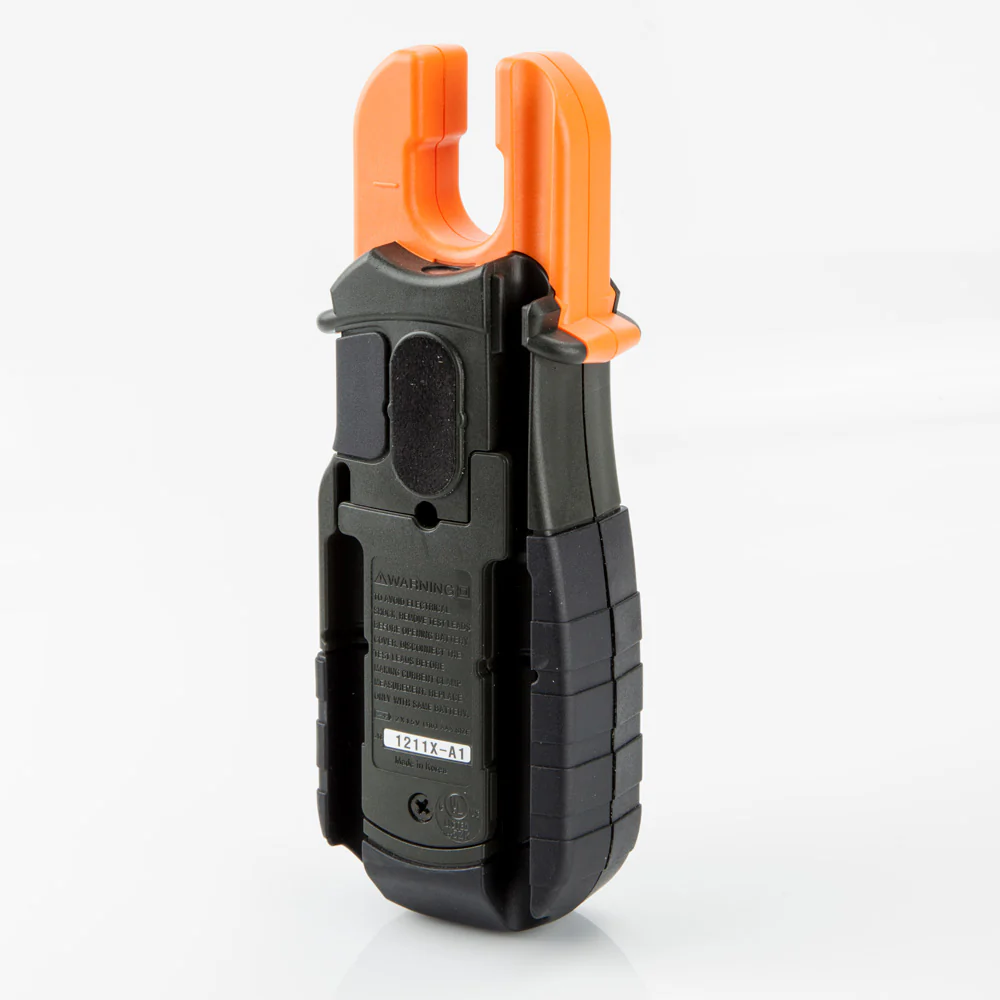

Klein CL3200 AC Fork Tester
The Klein CL3200 AC Fork Tester is a professional-grade electrical test instrument designed for fast, accurate diagnostics in tight working spaces. Featuring an extra-large jaw opening, non-contact voltage detection, and CAT IV safety rating, it is built for electricians and technicians who require reliable measurements and enhanced jobsite safety.
Key Benefits
- Extra-large fork jaw accepts up to 3/0 wire for versatile testing
- CAT IV 600V safety rating for demanding electrical environments
- Integrated work light and magnetic mount for hands-free operation
Product Overview
The Klein CL3200 AC Fork Tester combines clamp-style current measurement with advanced electrical testing features in a compact form. Its short jaw depth improves access in confined panels, while the backlit 4000-count display and analog bar graph provide clear readings in low-light conditions. The built-in non-contact voltage tester and low-impedance measurement capability support safer troubleshooting by reducing false readings.
Designed to withstand jobsite conditions, the CL3200 offers drop protection and a rugged housing suitable for daily professional use.
Ideal Applications
- Electrical installation and maintenance diagnostics
- Panel work and troubleshooting in tight spaces
- Commercial and industrial electrical testing
Technical Specifications
| Brand | Klein Tools |
| Model | CL3200 |
| Display | 4000-count backlit LCD with analog bar graph |
| Jaw Opening | 0.625 in (1.6 cm) |
| Voltage Measurement | 750V AC; 1000V DC |
| Current Measurement | 200 A |
| Resistance | 40 MΩ |
| Safety Rating | CAT IV 600V |
| Ingress Protection | IP30 |
| Drop Protection | 3.3 ft (1 m) |
| Power Source | 2 × AAA batteries |
| Overall Height | 7.063 in (17.9 cm) |
| Overall Width | 2.563 in (6.5 cm) |
What’s Included
- 1 × Klein CL3200 AC Fork Tester
- Test leads
- Protective carrying case
- 2 × AAA batteries
