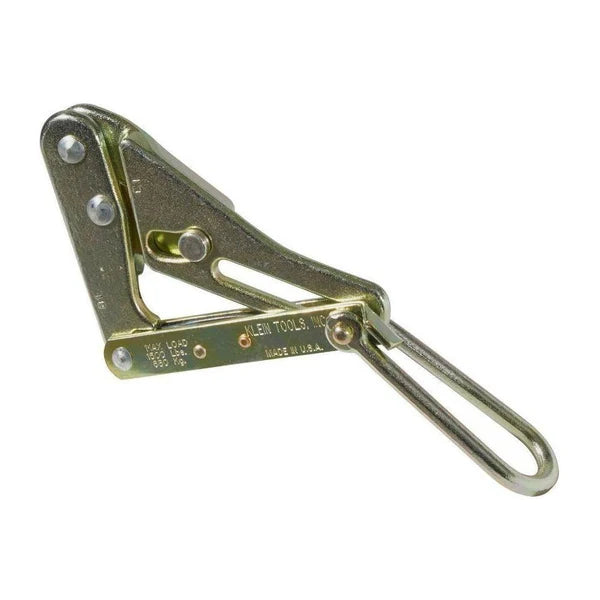

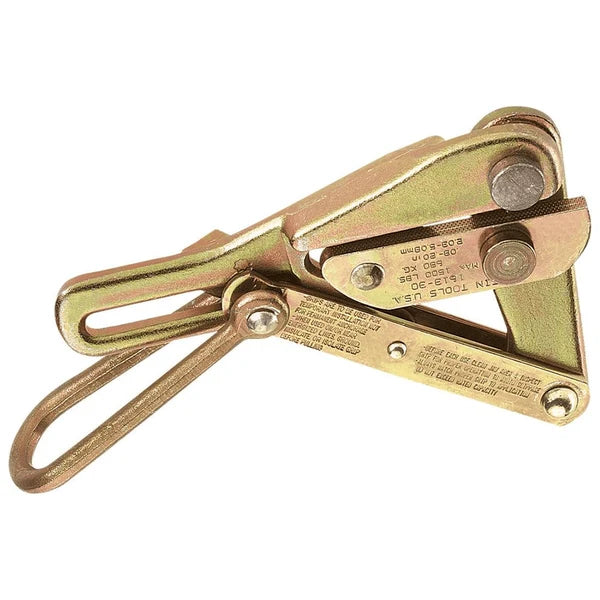

Klein Chicago Grip
The Klein Tools Chicago Grip is a professional cable pulling grip designed for secure holding and controlled pulling of stranded conductors and guy strand during installation and maintenance work. The round, smooth inside jaw contour provides maximum contact while reducing the risk of conductor deformation, making it suitable for field use where cable integrity and reliable grip performance are required.
Key Benefits
- Smooth jaw contour grips with maximum contact to help reduce conductor damage
- Jaw design helps reduce slippage for more controlled cable pulling
- Drop-forged, heat-treated steel construction for long service life
Product Overview
Klein Tools Chicago Grips are manufactured from custom drop-forged steel and are machined and heat treated for durability in demanding utility and electrical trade environments. Each grip is inspected and function-tested to support consistent field performance for pulling and tensioning applications involving stranded copper cables, ACSR, aluminum conductors, and messenger/guy strand (model dependent).
Ideal Applications
- Cable pulling and positioning during electrical installation
- Utility line maintenance work with compatible conductors
- Pulling and tensioning of messenger/guy strand (model dependent)
Technical Specifications
| Brand | Klein Tools |
| Product Type | Chicago Grip (Cable Pulling Grip) |
| Jaw Profile | Round, smooth inside jaw contour |
| Construction | Drop-forged, machined, heat-treated steel |
Model 1613-40
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | 0.12" to 0.37" (3.05 to 9.4 mm) |
| Locking Handle | Yes |
| Jaw Type | Double V |
| Jaw Length | 4.188" (10.6 cm) |
| Maximum Safe Load | 4500 lb (2041 kg) |
| Weight | 2.7 lb (1.2 kg) |
| Hot Latch / Swing Latch / Spring | N / N / N |
Model 1656-20
| Cable Type | Bare ACSR, Aluminum and Stranded-Copper Cables |
| Cable Diameter | 0.2" to 0.4" (5.08 to 10.16 mm) |
| Locking Handle | Yes |
| Jaw Type | Round |
| Jaw Length | 4" (10.2 cm) |
| Maximum Safe Load | 4500 lbs (2041 kg) |
| Weight | 2.7 lbs (1.2 kg) |
| Hot Latch / Swing Latch / Spring | N / N / N |

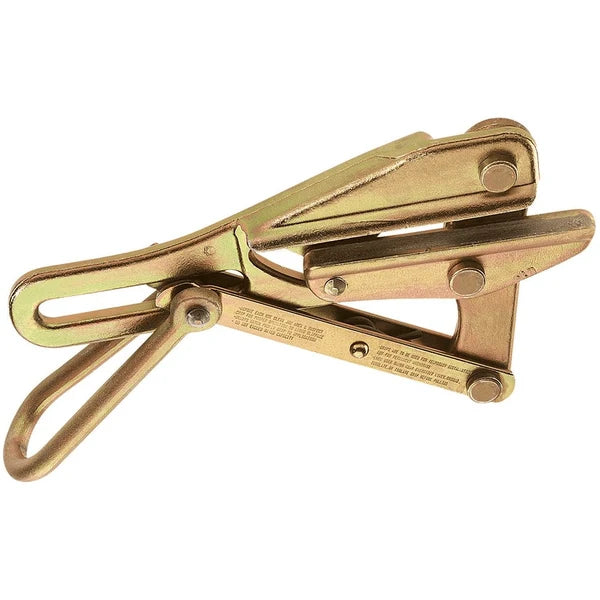

Model 1656-30
| Cable Type | Bare ACSR, Aluminum and Stranded-Copper Cables |
| Cable Diameter | 0.31" to 0.53" (7.87 to 13.46 mm) |
| Locking Handle | Yes |
| Jaw Type | Round |
| Jaw Length | 4.75" (12.1 cm) |
| Maximum Safe Load | 4500 lbs (2041 kg) |
| Weight | 3.4 lbs(1.5 kg) |
| Hot Latch / Swing Latch / Spring | N / N / N |
| Model / Size | Price (PHP) |
| 1613-40 | 18,300.00 |
| 1656-20 | 17,800.00 |
| 1656-30 | 19,500.00 |
| 1656-40 | 33,900.00 |
What’s Included
- 1 × Klein Tools Chicago Grip (selected model)
