Kito TFG Series Geared Trolley
₱25,300.00

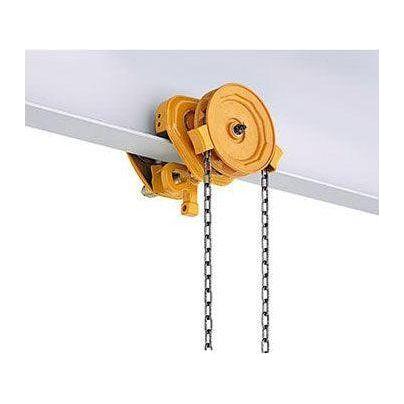

Kito TFG Series Geared Trolley
Design for precise positioning & traversing short distances. Wheel are specially machined and heat treated for exceptional durability. Extra light structure is achieved due to strict design conditions. Trolleys can be installed on either I-beam or H-beam rail.
| Code | Capacity kgs (tons) | Price without Suspender | Price with Suspender | Extra Lift Per Meter |
| TFG-010 | 1000 kgs (1 ton) | 25,300.00 | 28,300.00 | 1,800.00 |
| TFG-020 | 2000 kgs (2 tons) | 37,300.00 | 41,700.00 | 1,800.00 |
| TFG-030 | 3000 kgs (3 tons) | 49,900.00 | 56,100.00 | 1,800.00 |
| TFG-050 | 5000 kgs (5 tons) | 88,200.00 | - | 1,800.00 |
| TFG-100 | 10,000 kgs (10 tons) | 212,900.00 | - | 1,800.00 |
| TFG-200 | 20,000 kgs (20 Tons) | 592,300.00 | - | 3,600.00 |
| Code | Beam Width Adjustability (mm) | Hand Chain Folded Length |
| TFG-010 | 58~127mm | 2.5 m |
| TFG-020 | 82~153mm | 2.5 m |
| TFG-030 | 82~153mm | 3 m |
| TFG-050 | 125~178mm | 3.5 m |
| TFG-100 | 150~220mm | - |
| TFG-200 | 150~220mm | - |
