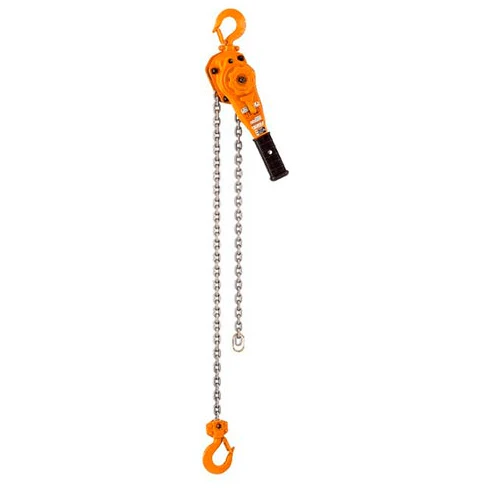

Kito (L5) LB/LBL Series Lever Block Hoist
Features: Smaller & Lighter Nickel-plated chain.
High strength frame. Lever Handle Hook Latch with safety mechanism.
| Code |
Capacity |
Price per unit |
Extra Lift Per Meter Price |
| LB-008 |
800 kg (3/4 ton) |
₱30,000.00 |
₱2,000.00 |
| LB-010 |
1000kg (1 ton) |
₱32,400.00 |
₱2,000.00 |
| LB-016 |
1600kg (1.6Tons) |
₱41,700.00 |
₱2,500.00 |
| LB-025 |
2500kg (2.5Tons) |
₱50,100.00 |
₱3,100.00 |
| LB-032 |
3200kg (3.2Tons) |
₱61,500.00 |
₱3,600.00 |
| LB-063 |
6300kg (6.3 Tons) |
₱95,000.00 |
₱7,100.00 |

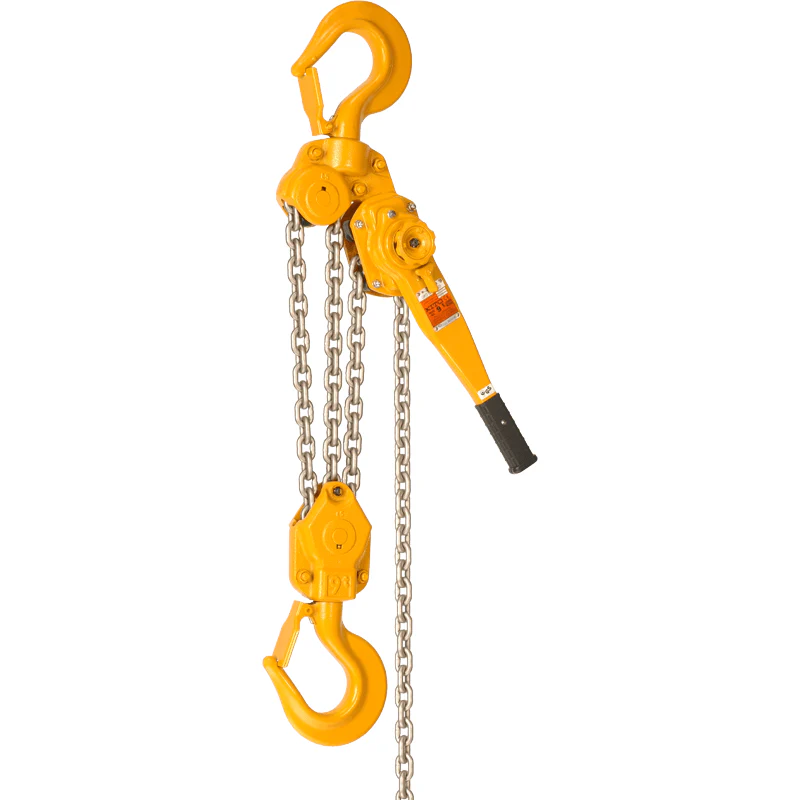

| LB-090 |
9000kg (9 Tons) |
₱128,300.00 |
₱10,600.00 |
| LBL-008 |
800 kg (3/4 ton) |
₱38,000.00 |
₱1,700.00 |
| LBL-010 |
1000kg (1 ton) |
₱45,000.00 |
₱1,700.00 |
| LBL-016 |
1600kg (1.6Tons) |
₱50,000.00 |
₱2,100.00 |
| LBL-025 |
2500kg (2.5Tons) |
₱60,000.00 |
₱2,600.00 |
| LBL-032 |
3200kg (3.2Tons) |
₱72,000.00 |
₱3,000.00 |
| LBL-063 |
6300kg (6.3 Tons) |
₱105,000.00 |
₱6,000.00 |
| LBL-090 |
9000kg (9 Tons) |
₱140,000.00 |
₱8,900.00 |
* LBL Model is with Overload Limiter / LB Model is WITHOUT Overload Limiter
| Capacity |
Standard Lift |
Hand Pull to Lift Full Load |
Load Chain ⌀ (mm x chain fall lines) |
Test Load |
| 800 kg (3/4 ton) |
1.5 meters |
29 kg |
5.6mm x 1 |
1200kg |
| 1000kg (1 ton) |
1.5 meters |
36 kg |
5.6mm x 1 |
1500kg |
| 1600kg (1.6Tons) |
1.5 meters |
34 kg |
7.1mm x 1 |
2400kg |
| 2500kg (2.5Tons) |
1.5 meters |
37 kg |
8.8mm x 1 |
3800kg |
| 3200kg (3.2Tons) |
1.5 meters |
37 kg |
10mm x 1 |
4800kg |
| 6300kg (6.3 Tons) |
1.5 meters |
38 kg |
10mm x 2 |
7900kg |
| 9000kg (9 Tons) |
1.5 meters |
39 kg |
10mm x 3 |
11300kg |
