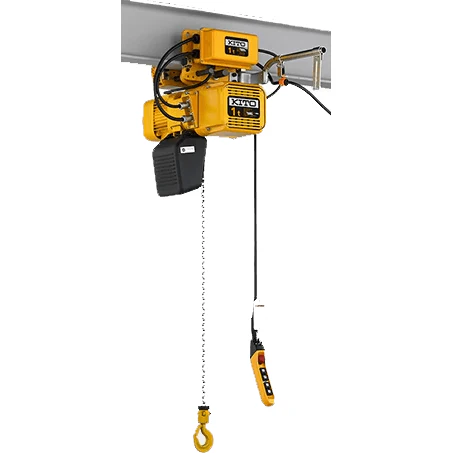

Kito ER2M Electric Chain Block Hoist with Motorized Trolley
₱353,300.00
Kito ER2M Electric Chain Block Hoist with Motorized Trolley
Leveraging Today's Most Advanced Hoisting Technology, This High-performance Hoist Exceeds the Expectations of Even the World's Most demanding Users.

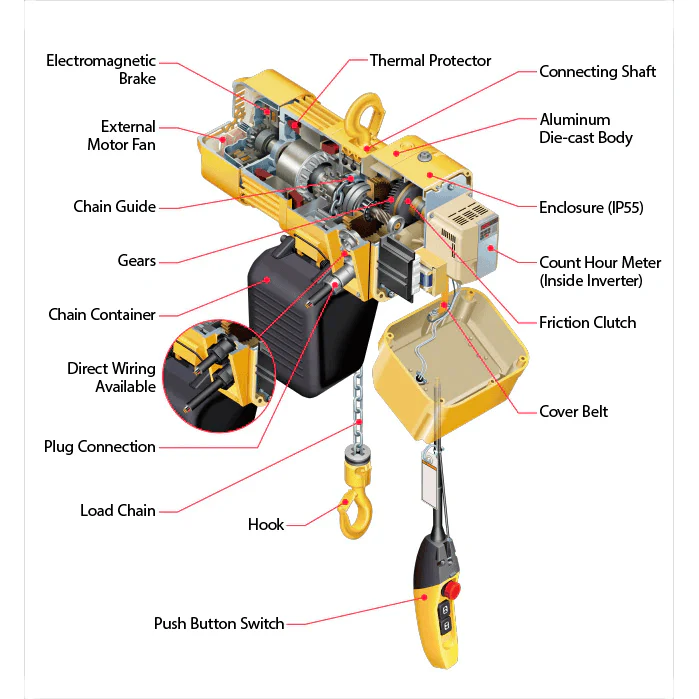

The compact aluminum die-cast body features exceptional rigidity and effective protection against dust and water. It has a simple structure and uses minimal parts, while the fine-tuned load-chain profile better exploits the lighter hoist body weight compared to the previous ER.
Compact body - lightweightSmooth and ergonomic operationReliable safetyEnhanced durabilityEasier maintenanceEnvironmentally friendly
Applications
Heavy Industry & steel industry
Foundries & mining
Paper industry
Food industry
Wind turbines & automotive industry
| Single Speed Chain Hoist / Single Speed Motorized Trolley | |||
| Code | Capacity kg (tons) | Unit Price | Extra Lift Per Meter Price |
| ER2M-001 H-S/L | 125kg (18T) | ₱353,300.00 | ₱5,700.00 |
| ER2M-003 S-S/L | 250kg (1/4T) | ₱356,000.00 | ₱5,700.00 |
| ER2M-003 H-S/L | 250kg (1/4T) | ₱387,400.00 | ₱6,400.00 |
| ER2M-005 L-S/L | 500kg (1/2T) | ₱329,300.00 | ₱6,400.00 |
| ER2M-005 S-S/L | 500kg (1/2T) | ₱372,500.00 | ₱6,400.00 |
| ER2M-010 L-S/L | 1000kg (1T) | ₱349,000.00 | ₱6,700.00 |
| ER2M-010 S-S/L | 1000kg (1T) | ₱438,400.00 | ₱6,700.00 |
| ER2M-015 S-S/L | 1500kg (1.5T) | ₱509,900.00 | ₱8,400.00 |
| ER2M-020 L-S/L | 2000kg (2T) | ₱522,900.00 | ₱8,400.00 |
| ER2M-020 S-S/L | 2000kg (2T) | ₱570,900.00 | ₱8,400.00 |
| ER2M-025 S-S/L | 2500kg (2.5T) | ₱653,300.00 | ₱9,200.00 |
| ER2M-030 S-S/L | 3000kg (3T) | ₱684,400.00 | ₱13,800.00 |
| ER2M-050 S-S/L | 5000kg (5T) | ₱996,300.00 | ₱15,300.00 |
| • Standard Lift is 3 Meters. Standard Supply is 10 Meters. Cable Hanger Option • Number of Cable hanger required is (travel span x 1.2) / 2 meters • 7.5~20T (ERM 7.5~200) Available upon request • Standard Voltage is 220V, 3 Phase,60Hz, for 440V, price add 10% • Motorized Trolley only, available upon request • Overload limiter available as option • W-30 Flange Width 305mm, available upon request • Traversing Speed, 24mpm, 12mpm upon request • Motor ED duty rating - 60% • Standard PSC is 10 mets, Power Supply Cable must be equal to Travel x 1.2 + 2meters |
|||
| Code | Hoist Body | Traversing Motor Output Kw | Lifting Speed m/min 60Hz | Flange Width: B mm | Min Radius |
| ER2M-001 H-S/L | B | 0.56 | 16.90 | 58~153mm | 800 |
| ER2M-003 S-S/L | B | 0.56 | 10.90 | 58~153mm | 800 |
| ER2M-003 H-S/L | C | 0.90 | 16.10 | 58~153mm | 800 |
| ER2M-005 L-S/L | C | 0.56 | 4.60 | 58~153mm | 800 |
| ER2M-005 S-S/L | C | 0.90 | 8.80 | 58~153mm | 800 |
| ER2M-010 L-S/L | D | 0.90 | 4.20 | 58~153mm | 800 |
| ER2M-010 S-S/L | D | 1.80 | 8.50 | 58~153mm | 800 |
| ER2M-015 S-S/L | E | 1.80 | 5.40 | 82~178mm | 800 |
| ER2M-020 L-S/L | E | 1.80 | 4.40 | 82~178mm | 800 |
| ER2M-020 S-S/L | E | 3.50 | 8.40 | 82~178mm | 800 |
| ER2M-025 S-S/L | F | 3.50 | 6.80 | 82~178mm | 1000 |
| ER2M-030 S-S/L | E | 3.50 | 5.30 | 82~178mm | 1000 |
| ER2M-050 S-S/L | F | 3.50 | 3.50 | 100~178mm | 1800 |
| Dual Speed Chain Hoist / Single Speed Motorized Trolley | |||
| Code | Capacity kg (tons) | Unit Price | Extra Lift Per Meter Price |
| ER2M-001 IH-S/L | 125kg (18T) | ₱413,600.00 | ₱6,000.00 |
| ER2M-003 IS-S/L | 250kg (1/4T) | ₱413,600.00 | ₱6,000.00 |
| ER2M-003 IH-S/L | 250kg (1/4T) | ₱467,000.00 | ₱6,700.00 |
| ER2M-005 IL-S/L | 500kg (1/2T) | ₱437,800.00 | ₱6,700.00 |
| ER2M-005 IS-S/L | 500kg (1/2T) | ₱461,400.00 | ₱6,700.00 |
| ER2M-010 IL-S/L | 1000kg (1T) | ₱494,900.00 | ₱7,100.00 |
| ER2M-010 IS-S/L | 1000kg (1T) | ₱526,900.00 | ₱7,100.00 |
| ER2M-015 IS-S/L | 1500kg (1.5T) | ₱600,000.00 | ₱8,800.00 |
| ER2M-020 IL-S/L | 2000kg (2T) | ₱613,700.00 | ₱8,800.00 |
| ER2M-020 IS-S/L | 2000kg (2T) | ₱679,200.00 | ₱8,800.00 |
| ER2M-025 IS-S/L | 2500kg (2.5T) | ₱775,500.00 | ₱9,600.00 |
| ER2M-030 IS-S/L | 3000kg (3T) | ₱803,700.00 | ₱14,300.00 |
| ER2M-050 IS-S/L | 5000kg (5T) | ₱1,152,100.00 | ₱15,900.00 |
|
• Standard Lift is 3 Meters. Standard Supply is 10 Meters. Cable Hanger Option • Number of Cable hanger required is (travel span x 1.2) / 2 meters • 7.5~20T (ERM 7.5~200) Available upon request • Standard Voltage is 220V, 3 Phase,60Hz, for 440V, price add 10% • Motorized Trolley only, available upon request • Overload limiter available as option • W-30 Flange Width 305mm, available upon request • Traversing Speed, 24mpm, 12mpm upon request • Motor ED duty rating - 60% • Standard PSC is 10 mets, Power Supply Cable must be equal to Travel x 1.2 + 2meters |
|||
| Code | Hoist Body | Traversing Motor Output Kw |
Lifting Speed m/min 60Hz (High/Low) |
Flange Width: B mm | Min Radius |
| ER2M-001 H-S/L | B | 0.40 | 16.6 / 2.8 | 58~153mm | 800 |
| ER2M-003 S-S/L | B | 0.40 | 10.8 / 1.8 | 58~153mm | 800 |
| ER2M-003 H-S/L | C | 0.40 | 15.7 / 2.6 | 58~153mm | 800 |
| ER2M-005 L-S/L | C | 0.40 | 4.5 / 0.8 | 58~153mm | 800 |
| ER2M-005 S-S/L | C | 0.40 | 8.5 / 1.4 | 58~153mm | 800 |
| ER2M-010 L-S/L | D | 0.40 | 4.2 / 0.7 | 58~153mm | 800 |
| ER2M-010 S-S/L | D | 0.40 | 8.2 /1.4 | 58~153mm | 800 |
| ER2M-015 S-S/L | E | 0.40 | 5.3 / 0.9 | 82~178mm | 800 |
| ER2M-020 L-S/L | E | 0.40 | 4.3 / 0.7 | 82~178mm | 800 |
| ER2M-020 S-S/L | E | 0.40 | 8.2 / 1.4 | 82~178mm | 800 |
| ER2M-025 S-S/L | F | 0.40 | 6.6 / 1.1 | 82~178mm | 1000 |
| ER2M-030 S-S/L | E | 0.40 | 5.2 / 0.9 | 82~178mm | 1000 |
| ER2M-050 S-S/L | F | 0.75 | 3.3 / 0.6 | 100~178mm | 1800 |
