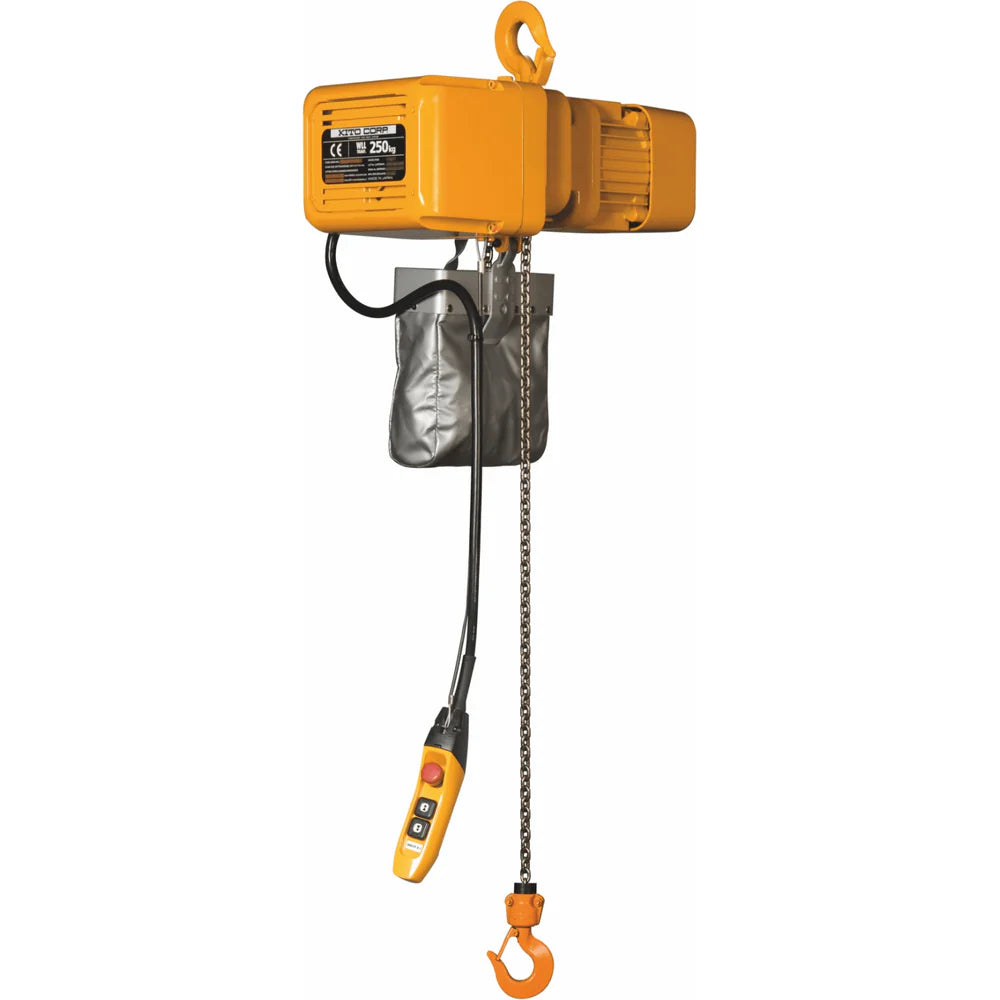

Kito ER2 Electric Chain Block Hoist
₱184,400.00
Kito ER2 Electric Chain Block Hoist
Our KITO ER2 Electric Chain Hoist is an all-rounder and is suitable for the toughest conditions. High performance, durability and robustness are not foreign words to him. The ER2 is available in extensive load capacities, variants and options.
Usage
For applications under extreme conditions – powerful, durable and robust
Extensive load capacities, variants and options possible – available with contactor control or with a high-quality frequency converter at two lifting speeds
Easy to maintain – disassembly for servicing can be carried out quickly and without special tools
Applications
Heavy Industry & steel industry
Foundries & mining
Paper industry
Food industry
Wind turbines & automotive industry
| Single Speed, Hook Suspension | |||
| Code | Capacity kg (tons) | Unit Price | Extra Lift Per Meter Price |
| ER-001 H | 125kg (18T) | 184,400.00 | 4,700.00 |
| ER2-003 S | 250kg (1/4T) | 187,000.00 | 4,700.00 |
| ER2-003 H | 250kg (1/4T) | 217,400.00 | 5,400.00 |
| ER2-005 L | 500kg (1/2T) | 161,100.00 | 5,400.00 |
| ER2-005 S | 500kg (1/2T) | 202,900.00 | 5,400.00 |
| ER2-010 L | 1000kg (1T) | 180,300.00 | 5,700.00 |
| ER2-010 S | 1000kg (1T) | 266,700.00 | 5,700.00 |
| ER2-015 S | 1500kg (1.5T) | 296,500.00 | 7,400.00 |
| ER2-020 L | 2000kg (2T) | 309,100.00 | 7,400.00 |
| ER2-020 S | 2000kg (2T) | 351,600.00 | 7,400.00 |
| ER2-025 S | 2500kg (2.5T) | 394,800.00 | 8,200.00 |
| ER2-030 S | 3000kg (3T) | 424,900.00 | 12,800.00 |
| ER2-050 S | 5000kg (5T) | 619,300.00 | 14,300.00 |
| • Standard Lift is 3 Meters. Standard Supply is 5 Meters. Cable Hanger Option • 10T-20T (ER 100~200) available upon request • Standard Voltage is 220V, 3 Phase,60Hz, for 440V, price add 10% • Motor ED duty rating - 60% |
|||
| Code | Hoist Body | Lifting Motor Output KW | Lifting Speed m/min 60Hz |
Load Chain (mm x Chain Fall)
|
| ER-001 H | B | 0.56 | 16.9 | 4.3mm x 1 |
| ER2-003 S | B | 0.56 | 10.9 | 4.3mm x 1 |
| ER2-003 H | C | 0.9 | 16.1 | 6mm x 1 |
| ER2-005 L | C | 0.56 | 4.6 | 6mm x 1 |
| ER2-005 S | C | 0.9 | 8.8 | 7.7mm x 1 |
| ER2-010 L | D | 0.9 | 4.2 | 7.7mm x 1 |
| ER2-010 S | D | 1.8 | 8.5 | 10.2mm x 1 |
| ER2-015 S | E | 1.8 | 5.4 | 10.2mm x 1 |
| ER2-020 L | E | 1.8 | 4.4 | 10.2mm x 1 |
| ER2-020 S | E | 3.5 | 8.4 | 11.2mm x 1 |
| ER2-025 S | F | 3.5 | 6.8 | 11.2mm x 1 |
| ER2-030 S | E | 3.5 | 5.3 | 10.2mm x 1 |
| ER2-050 S | F | 3.5 | 3.5 | 11.2mm x 2 |
| Dual Speed, Hook Suspension | |||
| Code | Capacity kg (tons) | Unit Price | Extra Lift Per Meter Price |
| ER-001 IH | 125kg (18T) | 237,300.00 | 5,100.00 |
| ER2-003 IS | 250kg (1/4T) | 237,300.00 | 5,100.00 |
| ER2-003 IH | 250kg (1/4T) | 290,700.00 | 5,800.00 |
| ER2-005 IL | 500kg (1/2T) | 261,500.00 | 5,800.00 |
| ER2-005 IS | 500kg (1/2T) | 285,000.00 | 5,800.00 |
| ER2-010 IL | 1000kg (1T) | 318,600.00 | 6,100.00 |
| ER2-010 IS | 1000kg (1T) | 350,500.00 | 6,100.00 |
| ER2-015 IS | 1500kg (1.5T) | 381,600.00 | 7,900.00 |
| ER2-020 IL | 2000kg (2T) | 395,300.00 | 7,900.00 |
| ER2-020 IS | 2000kg (2T) | 456,700.00 | 7,900.00 |
| ER2-025 IS | 2500kg (2.5T) | 514,000.00 | 8,700.00 |
| ER2-030 IS | 3000kg (3T) | 542,200.00 | 13,400.00 |
| ER2-050 IS | 5000kg (5T) | 775,900.00 | 15,000.00 |
|
• Standard Lift is 3 Meters. Standard Supply is 5 Meters. Cable Hanger Option • Standard Voltage is 220V, 3 Phase,60Hz, for 440V, price add 10% • Overload Limiter available as option • Motor ED duty rating - 40/20% |
|||
| Code | Hoist Body | Lifting Motor Output KW | Lifting Speed m/min 60Hz |
Load Chain (mm x Chain Fall)
|
| ER-001 IH | B | 0.56 | 1.6 / 2.8 | 4.3mm x 1 |
| ER2-003 IS | B | 0.56 | 10.8 / 1.8 | 4.3mm x 1 |
| ER2-003 IH | C | 0.9 | 15.7 / 2.6 | 6mm x 1 |
| ER2-005 IL | C | 0.56 | 4.5 / 0.8 | 6mm x 1 |
| ER2-005 IS | C | 0.9 | 8.5 / 1.4 | 6mm x 1 |
| ER2-010 IL | D | 0.9 | 4.2 / 0.7 | 7.7mm x 1 |
| ER2-010 IS | D | 1.8 | 8.2 / 1.4 | 7.7mm x 1 |
| ER2-015 IS | E | 1.8 | 5.3 / 0.9 | 10.2mm x 1 |
| ER2-020 IL | E | 1.8 | 4.3 / 0.7 | 10.2mm x 1 |
| ER2-020 IS | E | 3.5 | 8.2 / 1.4 | 10.2mm x 1 |
| ER2-025 IS | F | 3.5 | 6.6 / 1.1 | 11.2mm x 1 |
| ER2-030 IS | E | 3.5 | 5.2 / 0.9 | 10.2mm x 2 |
| ER2-050 IS | F | 3.5 | 3.3 / 0.6 | 11.2mm x 2 |
