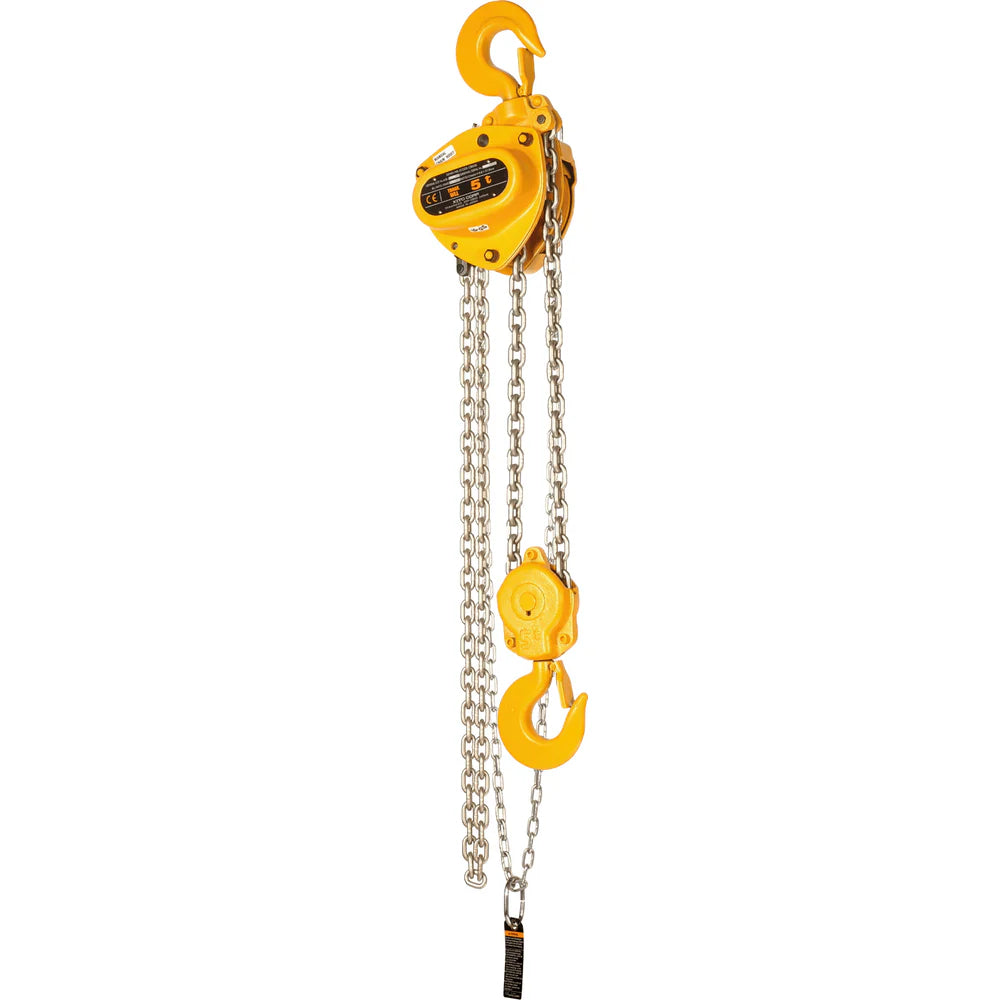

Kito CB Series Manual Chain Block Hoist
₱27,400.00
Kito CB Series Manual Chain Block Hoist
Heavy Duty & Ultra light model for easy handling with minimal manual power of lifting loads. Reliable & durable for attaining max. lifting efficiency.
Features: Gear Case & hand wheel cover resistant to external shocks. Double pawl spring mechanism to further increase sureness. Sure & reliable braking functions (Mechanical brake). Bearing mechanism to increase efficiency. Load chain guide mechanism. Stopper prevents excessive lowering. Ultra strong load chain.
| Code | Capacity | Price per unit | Extra Lift Per Meter Price |
| CB-005 | 500 kg (1/2 ton) | ₱27,400.00 | ₱3,100.00 |
| CB-010 | 1000kg (1 ton) | ₱32,500.00 | ₱3,500.00 |
| CB-015 | 1500kg (1.5Tons) | ₱43,000.00 | ₱3,800.00 |
| CB-020 | 2000kg (2Tons) | ₱50,000.00 | ₱4,100.00 |
| CB-025 | 2500kg (2.5Tons) | ₱58,800.00 | ₱4,400.00 |
| CB-030 | 3000kg (3Tons) | ₱66,300.00 | ₱6,300.00 |
| CB-050 | 5000kg (5Tons) | ₱95,300.00 | ₱7,700.00 |
| CB-075 | 7500kg (7.5Tons) | ₱129,900.00 | ₱10,900.00 |
| CB-100 | 10,000kg (10Tons) | ₱183,900.00 | ₱14,200.00 |
| CB-150 | 15,000kg (15 Tons) | ₱316,200.00 | ₱20,700.00 |

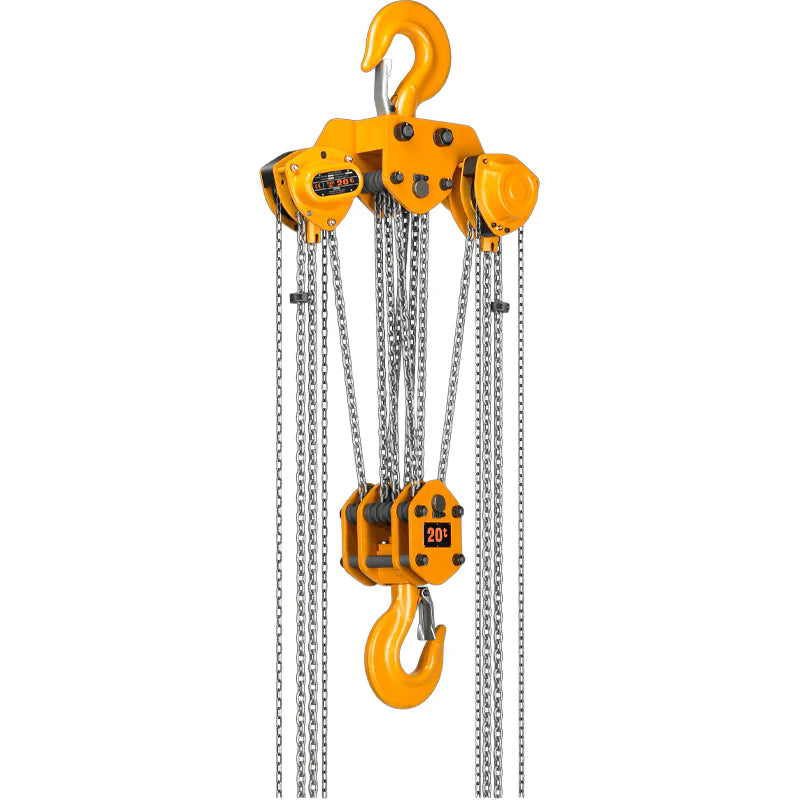

| CB-200 | 20,000kg (20 Tons) | ₱538,500.00 | ₱28,300.00 |
* 30 Tons - 50 Tons (CB-300 to CB-500) available upon request.
Overload Limited available as option(may incur charge)*
| Capacity | Standard Lift | Hand Chain Folded Length | Chain Pull to Lift Pull Load |
Load Chain ⌀ (mm x chain fall lines)
|
| 500 kg (1/2 ton) | 2.5 meters | 2.5m | 24 kgf | 5mm x 1 |
| 1000kg (1 ton) | 2.5 meters | 2.5m | 29 kgf | 6.3mm x 1 |
| 1500kg (1.5Tons) | 2.5 meters | 2.5m | 35 kgf | 7.1mm x 1 |
| 2000kg (2Tons) | 3 meters | 3m | 36 kgf | 8mm x 1 |
| 2500kg (2.5Tons) | 3 meters | 3m | 33 kgf | 9mm x 1 |
| 3000kg (3Tons) | 3 meters | 3m | 36 kgf | 7.1mm x 2 |
| 5000kg (5Tons) | 3 meters | 3.5m | 34 kgf | 9mm x 2 |
| 7500kg (7.5Tons) | 3.5 meters | 4m | 35 kgf | 9mm x 3 |
| 10,000kg (10Tons) | 3.5 meters | 4m | 36 kgf | 9mm x 4 |
| 15,000kg (15 Tons) | 3.5 meters | 4.5m | 37 kgf | 9mm x 6 |
| 20,000kg (20 Tons) | 3.5 meters | 4.5m | 36 x 2 kgf | 9mm x 8 |
