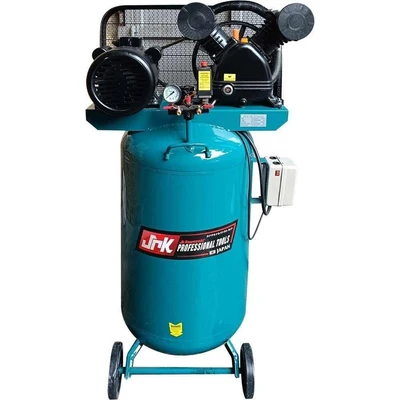

JR Kawasaki JRKHPVAC200L 5.5HP Belt Driven Air Compressor 180PSI (Vertical)
The JR Kawasaki JRKHPVAC200L High-Pressure Vertical Belt-Driven Air Compressor is a heavy-duty 5.5HP compressed-air system designed for applications requiring pressure up to 180PSI. Its 200-liter vertical receiver tank, 470L/min specified airflow, and belt-driven configuration make it suitable for automotive servicing, industrial maintenance, fabrication, high-pressure inflation, and compatible pneumatic equipment.
Key Benefits
- High-pressure output of up to 180PSI supports compatible demanding pneumatic applications.
- Powerful 5.5HP motor provides dependable performance for workshop and industrial use.
- Specified airflow of 470L/min supports compatible air tools and equipment.
- Large 200-liter vertical receiver tank provides substantial air storage while conserving floor space.
- Belt-driven configuration allows the compressor pump to operate at a controlled 1,020rpm.
Product Overview
The JR Kawasaki JRKHPVAC200L operates on a 220V, 60Hz electrical supply and uses a belt-and-pulley system to transfer power from the motor to the compressor pump. Its high-pressure rating of 180PSI makes it suitable for compatible applications that require more pressure than conventional 120PSI workshop compressors.
The vertical 200-liter receiver tank stores compressed air while using less floor space than many horizontal tank designs. Actual tool performance depends on the compressor’s delivered airflow at the required pressure, hose diameter, fittings, regulator setting, duty cycle, and connected equipment.
Ideal Applications
- High-pressure tire and equipment inflation
- Automotive repair and servicing
- Compatible pneumatic impact tools and fastening equipment
- Fabrication, industrial maintenance, and workshop cleaning
- Compatible spray and compressed-air applications requiring up to 180PSI
Technical Specifications
| Brand | JR Kawasaki |
| Model | JRKHPVAC200L |
| Product Type | High-Pressure Vertical Belt-Driven Air Compressor |
| Motor Power | 5.5HP |
| Rated Voltage | 220V |
| Rated Frequency | 60Hz |
| Rated Speed | 1,020rpm |
| Specified Airflow | 470L/min |
| Maximum Pressure | 180PSI / approximately 12.4 bar |
| Air Tank Capacity | 200L |
| Tank Orientation | Vertical |
| Drive Type | Belt driven |
| Power Source | Corded electric |
Specification Note
The 470L/min specification measures airflow, while 180PSI measures pressure. Confirm whether the stated airflow refers to pump displacement or actual delivered airflow at a specific pressure. The electrical phase, compressor stage, cylinder configuration, lubrication type, duty cycle, and cut-in and cut-out pressures should also be verified before installation.
Compatibility Note
Use only hoses, fittings, regulators, filters, valves, and pneumatic equipment rated for at least the compressor’s maximum 180PSI pressure. Compare the confirmed delivered airflow at the required operating pressure with the consumption of the intended tool. A qualified electrician should verify the circuit breaker, cable size, grounding, disconnect, and motor-starting requirements.
