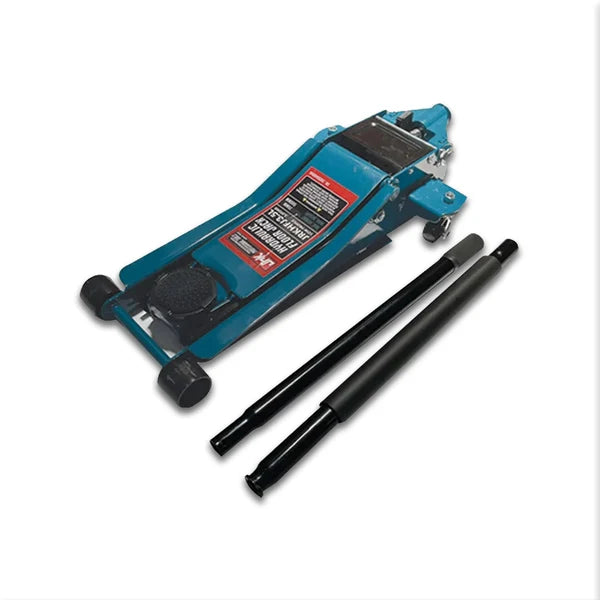

JR Kawasaki JRKHFJ-3.5L Low Hydraulic Floor Jack 3.5T
The JR Kawasaki JRKHFJ-3.5L Low Hydraulic Floor Jack is a heavy-duty 3.5-ton vehicle-lifting tool designed for passenger cars, sports cars, SUVs, pickup trucks, vans, and compatible light commercial vehicles. Its low 75mm minimum height allows access beneath vehicles with limited ground clearance, while its 500mm maximum height provides practical lifting clearance for automotive maintenance and repair.
Key Benefits
- 3.5-ton rated lifting capacity supports compatible passenger and light commercial vehicles.
- Low 75mm minimum height is suitable for many sports cars, lowered vehicles, and low-clearance jacking points.
- Maximum lifting height of 500mm provides practical clearance for SUVs, pickups, vans, and workshop servicing.
- Wide 425mm lifting range supports different vehicle heights and maintenance requirements.
- 20kg net weight balances heavy-duty lifting capability with workshop portability.
Product Overview
The JR Kawasaki JRKHFJ-3.5L is a low-profile hydraulic floor jack designed to raise one section of a compatible vehicle from an approved jacking point. Its low entry height makes it more suitable for vehicles that cannot accommodate a conventional floor jack with a taller minimum saddle position.
The jack has a rated lifting capacity of 3.5 tons or 3,500kg and operates from a minimum height of 75mm to a maximum height of 500mm. Actual vehicle compatibility depends on the load applied at the selected jacking point, available underbody clearance, required service height, saddle contact, and the vehicle manufacturer’s lifting instructions.
Ideal Applications
- Low-profile passenger cars and sports cars
- SUVs, pickup trucks, vans, and compatible light commercial vehicles
- Tire changing and wheel servicing
- Brake, suspension, and underbody inspection
- Automotive workshops, garages, and fleet-maintenance facilities
Technical Specifications
| Brand | JR Kawasaki |
| Model | JRKHFJ-3.5L |
| Product Type | Low-Profile Hydraulic Floor Jack |
| Rated Lifting Capacity | 3.5 tons / 3,500kg |
| Minimum Lifting Height | 75mm |
| Maximum Lifting Height | 500mm |
| Lifting Range | 425mm |
| Net Weight | 20kg |
| Lifting Mechanism | Hydraulic |
Low-Profile Design Note
The 75mm minimum height allows the jack to fit beneath many low-clearance vehicles. However, the actual vehicle jacking point must still provide enough space for the jack body and saddle. Body kits, undertrays, side skirts, exhaust components, and suspension modifications may affect access.
Capacity Note
The 3.5-ton rating refers to the maximum permitted load applied to the jack under proper operating conditions. It does not automatically make the jack suitable for every vehicle weighing less than 3.5 tons. Confirm the actual load at the selected jacking point and follow the vehicle manufacturer’s lifting procedure.
Specification Verification Note
The saddle diameter, chassis length, chassis width, handle length, wheel and caster configuration, hydraulic-oil specification, overload-protection system, number of pump pistons, rapid-lift feature, lowering-control design, and construction materials were not included in the supplied specifications. Confirm these details before recommending the jack for a specific workshop or vehicle.
Operating and Safety Note
Use the jack only on a firm, level, and stable surface. Position the saddle under an approved vehicle jacking point and keep the load centered. A floor jack is designed only for lifting and lowering and must never serve as permanent support. Place correctly rated jack stands beneath approved support points before working under or near the vehicle. Never exceed the rated capacity or place any part of the body beneath a vehicle supported only by the jack.
What’s Included
- 1 pc JR Kawasaki JRKHFJ-3.5L Low-Profile Hydraulic Floor Jack
