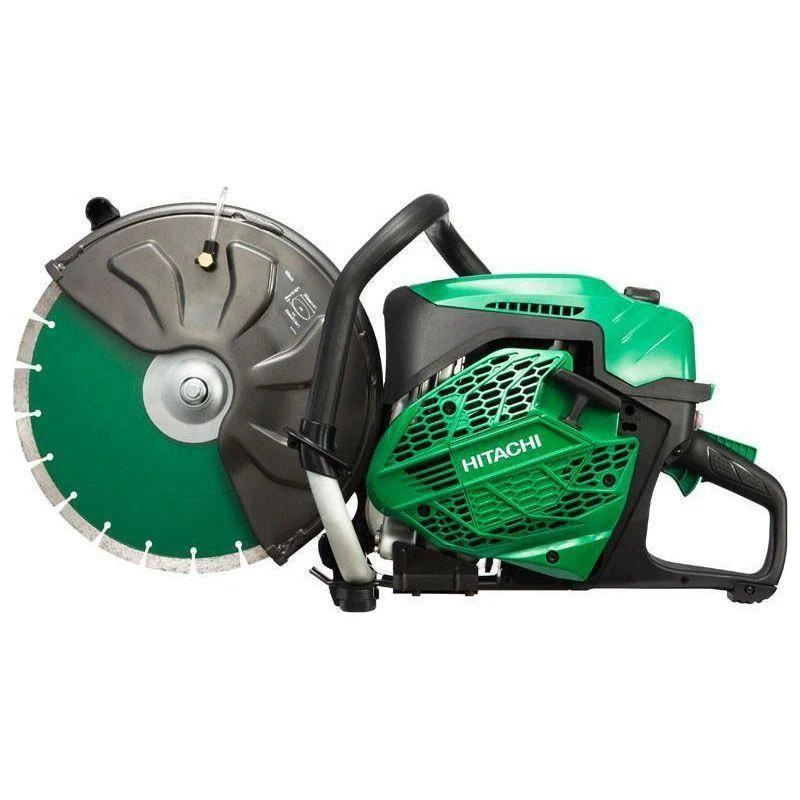

Hitachi CM75EBP Engine Concrete Cutter 14" (2-Stroke)
₱52,500.00
Hitachi CM75EBP Engine Concrete Cutter 14" (2-Stroke)
- Powered by 75mL(cc) New PureFire Eengine
- Exhaust Pulsation Muffler increases charge efficiency and power, and reduces fuel consumption
- Compensator delivers stable power
- Metal Cover Plate
- Metal Lower Guard and Metal Front Foot Plate
- Dust-resistant Recoil Starter with Decomp. system
- Toolless Detachable Pre-filter
- Convenient Tool Holder
Specifications
| Model | CM75EBP | |
| Displacement | 75.0mL (cc) | |
| Max Power | 3.9kW | |
| Decomp. System | Yes | |
| Fuel Tank Capacity | 1,100mL | |
| Abrasive Wheel (Type 41) / Diamond Wheel |
Outer Dia. | 355mm (14") |
| Arbor Hole Dia. | 20mm (51/64") [ 25.4mm (1") with Adapter collar ] | |
| Max. Speed | 5,100/min or more | |
| Max. Thickness | 4.0mm (5/32") | |
| Spindle Max. Speed | 4,200/min | |
| Dimensions (L x W x H) | 630 x 225 x 420mm (24-51/64" x 8-7/8" x 16-17/32") |
|
| Weight (without fuel, wheel and accessories) | 10.6kg (23.4 lbs.) | |
| Sound Pressure Level LpA*1 by ISO 19432 | Measured : 99.5 dB(A) Uncertainty K : 3.0 dB(A) |
|
| Sound Power Level LwA*2 by ISO 19432 | Measured : 115 dB(A) Uncertainty K : 3.0 dB(A) |
|
| Vibration Level*1 by ISO 19432 | Front handle : 2.4 m/s2 Rear handle : 2.9 m/s2 Uncertainty K : 1.0 m/s2 |
|
| Standard Accessories | Abrasive Cut-off Wheel, Adapter Collar, Combi Box Spanner, Hex. Wrench, Protective Glasses | |
Note : Noise level / vibration levels are calculated as the time-weighted energy total for noise / vibration levels under various working conditions with the following time distribution:
*1 : 1/7 idle, 6/7 full load.
*2 : Full load.
All data are subject to change without notice.
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard / optional accessories may vary from country to country.
