Bosch GTH18V-38-2M Cordless Narrow Crown Stapler 38mm 18V (Bare)
BARE TOOL - Battery and Charger not yet included.
Bosch GTH18V-38-2M Cordless Narrow Crown Stapler 38mm 18V (Bare) is a cordless and gasless narrow crown stapler designed to deliver pneumatic-style fastening performance without requiring a compressor. It uses 18ga (1.2mm) narrow crown staples from 9.5 – 38mm with a 5.8mm crown width and features an EC brushless motor, direct drive system, precision depth adjustment, and single or contact activation modes.
Key Benefits
- 20% less weight compared to GTH 18V-38 2M thanks to smaller motor unit perfectly adapted to the required driving force
- Less noise and no ramp-up sound due to innovative motor control activating the motor only when needed
- More compact design thanks to motor and flywheel being combined into a direct drive
Product Overview

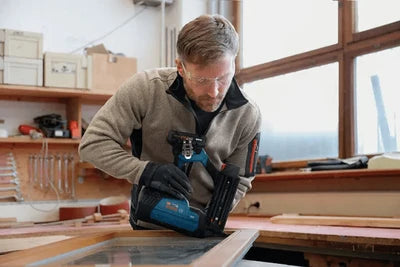

The Bosch GTH18V-38-2M is an 18V cordless narrow crown stapler designed for cabinet installation, flooring, façade, insulation, upholstery, and construction applications. Its brushless EC motor provides strong fastening performance, while the direct drive system helps reduce weight, improve compactness, and minimize operating noise. It also features a narrow nose for better visibility and precise staple positioning, dry-fire lockout, double LED work lights, an integrated belt hook, and stepless precision depth adjustment.
Ideal Applications
- Furniture backpanels, ceiling, floor, and wall panels
- Acoustic construction, upholstery, and trade fair construction / stage design
- Trellis, wire fence, façade, insulation, and flooring work
Technical Specifications
| Brand | Bosch |
| Model | GTH18V-38-2M |
| Product Type | Cordless Narrow Crown Stapler |
| SKU | 0601482D80 |
| EAN Code | 4053423678932 |
| Voltage | 18 V |
| Motor | EC |
| Staple Diameter | 18 / 1.2 [ga/mm] |
| Staple Length / Crown Width | 9.5 – 38 / 5.8 mm |
| Magazine Angle | 0° |
| Activation Modes | Single / contact |
| Precision Depth Adjustment | Yes |
| Dry-fire Lockout | Yes |
| Drive System | Direct drive |
| Nose | Narrow nose |
| Work Light | Double LED |
| Belt Hook | Integrated belt hook |
| Tool Dimension (LxWxH) | 308 x 273 x 106 mm |
| Packaging Dimension (LxWxH) | 370 x 335 x 132 mm |
| Weight (Gross/Net) | 3.5 kg / 2.4 kg |
| Baretool Part No. | 3601D82D80 |
| Belt Clip Part No. | 1600A0214E |
Compatible Narrow Crown Staple Specifications
| Type | 1.2/18ga narrow crown staples |
| Version | Galvanised |
| Name Short | TK40 |
| Angle | 0° |
| Head Shape | Crown |
| Crown Width | 5.8 mm |
| Thickness | 1.2 mm |
| Available Lengths |
15 mm 20 mm 25 mm 30 mm 35 mm 38 mm |
| Pack Quantity | 5000 |
Compatible Narrow Crown Staple Part Numbers
| 15G / 15 mm | 2608200700 |
| 20G / 20 mm | 2608200701 |
| 25G / 25 mm | 2608200702 |
| 30G / 30 mm | 2608200703 |
| 35G / 35 mm | 2608200704 |
| 38G / 38 mm | 2608200705 |
Staple Details
| Head Type | Staple crown |
| Shank | Resin-coated: Increased long-term permanent load bearing capacity |
| Staple Point | Chisel point: legs stay parallel when driven into wood |
What’s Included
- Bosch GTH18V-38-2M Cordless Narrow Crown Stapler 38mm 18V (Bare)
- Belt clip
