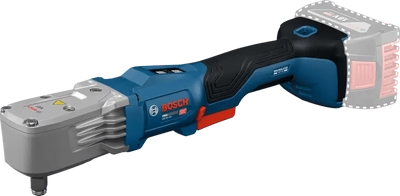

Bosch GRS 18V–330 18V Cordless Right Angle Impact Wrench (Bare Tool)
BARE TOOL - Battery and Charger not yet included.
Bosch GRS 18V–330 Cordless Right Angle Impact Wrench 18V (Bare) is a compact right-angle impact wrench designed for fastening and loosening applications in narrow and hard-to-reach spaces. It delivers up to 330 Nm fastening torque and 560 Nm breakaway torque, with a compact 78mm head length and 56mm head diameter for improved access.
Key Benefits
- Right-angle design with compact 78mm head length and 56mm head diameter for access to narrow spaces
- Brushless motor delivers up to 330 Nm fastening torque and 560 Nm breakaway torque
- 3-speed selection with Auto Shut Off / ABR mode for improved control across different fastening applications
Product Overview
The Bosch GRS 18V–330 is an 18V cordless right-angle impact wrench designed for metal installation, HVAC, plumbing, electrical installation, and automotive maintenance. Its compact right-angle head provides access to previously difficult-to-reach areas such as engine bays, chassis, and narrow structural spaces. The user interface provides three speed levels together with Auto Stop for forward operation and ABR mode for reverse operation. An integrated LED light illuminates the working area, while the 2-finger ergonomic switch supports comfortable operation in different positions and angles.
Ideal Applications
- Truss installation and bolting in narrow spaces in metal structures and machines

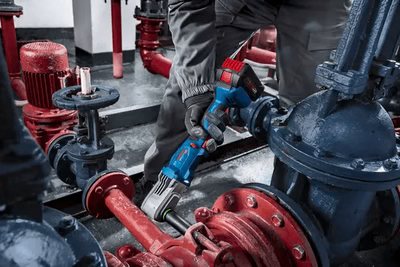

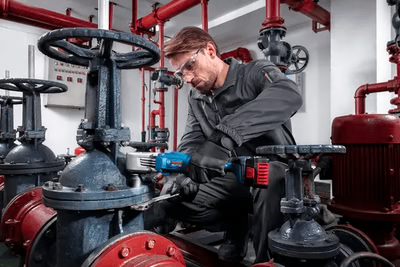

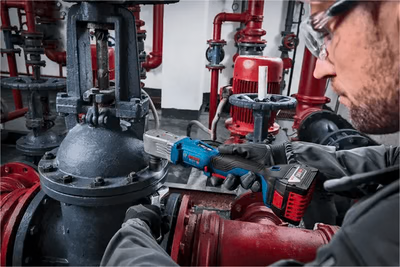

- Flange bolting, electrical installation, and maintenance work

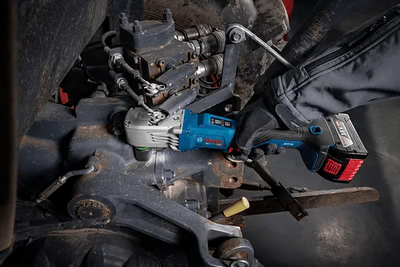

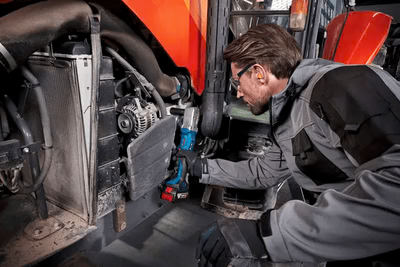

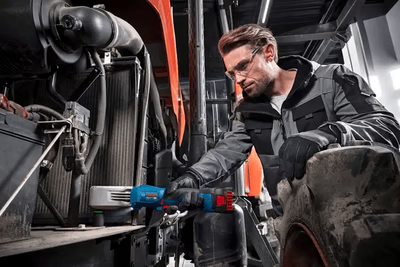

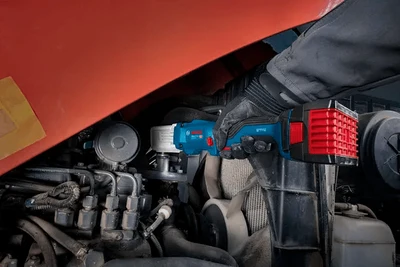

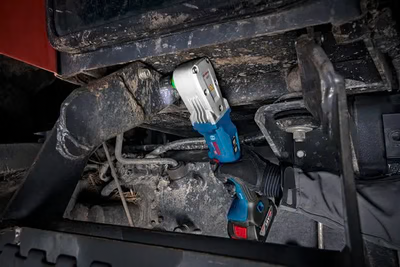

- Automotive repair in narrow spaces such as engine bays and chassis
Technical Specifications
| Brand | Bosch |
| Model | GRS 18V–330 |
| Product Type | Cordless Right Angle Impact Wrench |
| SKU | 06019R9080 |
| EAN Code | 6949509256256 |
| Voltage | 18 V |
| Drive Size | 1/2" |
| Head Length | 78 mm |
| Head Diameter | 56 mm |
| Weight (w/o Battery) | 1.5 kg |
| No-load Speed | 3000 rpm |
| Impact Rate | 4200 bpm |
| Fastening Torque | 330 Nm |
| Breakaway Torque | 560 Nm |
| Feature | 3 speeds + ABR + Auto stop |
| Motor | Brushless motor |
| Speed 1 | 85Nm (M10) |
| Speed 2 | 200Nm (M12-M14) |
| Speed 3 | 330Nm (M16-M18) |
| Auto Stop Mode |
Forward direction only Impact wrench automatically shuts off when the bolt reaches the surface Can be turned on/off at 3 speeds |
| ABR Mode |
Reverse direction only Impact wrench shuts off after loosening Can be turned on/off at 3 speeds |
| Work Light | Integrated LED light |
| Switch | 2-finger ergonomic switch |
| Tool Dimension (LxWxB) | 353 x 88 x 87 mm |
| Packaging Dimension (LxWxB) | 385 x 98 x 89mm |
| Weight (Gross/Net) | 1.9 kg / 1.5 kg |
| Baretool Part No. | 3601JR9080 |
What’s Included
- Bosch GRS 18V–330 Cordless Right Angle Impact Wrench 18V (Bare)
