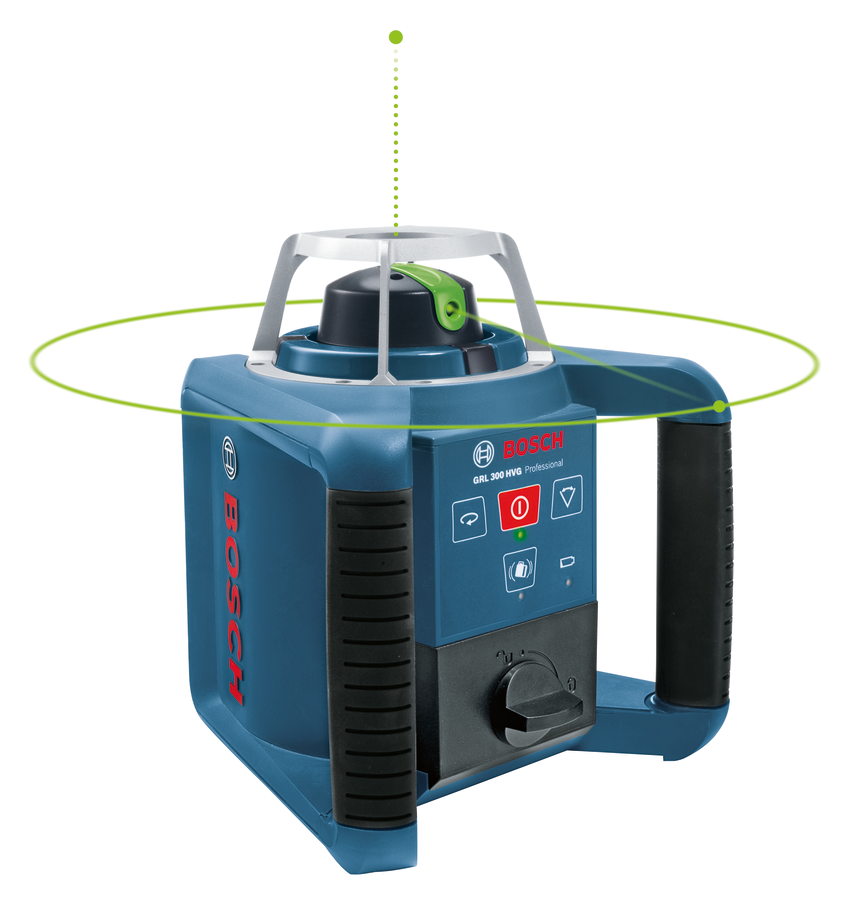

Bosch GRL 300 HVG Rotation Laser
- Easy to operate thanks to one button per function and self
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Technical data
|
Working range* |
100 m |
|
Working range with receiver* |
300 m (Diameter) |
|
Accuracy* |
± 0.1 mm/m |
|
Laser diode |
532 nm, < 5 mW |
|
Operating temperature, from |
0 °C |
|
Operating temperature, up to |
40 °C |
|
Operating temperature |
0 – 40 °C |
|
Storage temperature, from |
-20 °C |
|
Storage temperature, up to |
70 °C |
|
Storage temperature |
-20 – 70 °C |
|
Laser class |
3R |
|
Working range with receiver, value |
300 m |
|
Working range with receiver, appendage |
(Diameter) |
|
Working range without receiver, value |
100 m |
|
Working range without receiver, appendage |
(Diameter) |
|
Working range without receiver |
100 m (Diameter) |
|
Self-levelling range |
± 5° (8%) |
Additional Data
|
Levelling time |
15 s |
|
Dust and splash protection |
IP 54 |
|
Rotation speed |
150, 300, 600 rpm |
|
Power supply |
2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D) |
|
Operating time (max.) |
Rechargeable batteries (NiMH) 20 h |
|
Tripod thread |
5/8" |
|

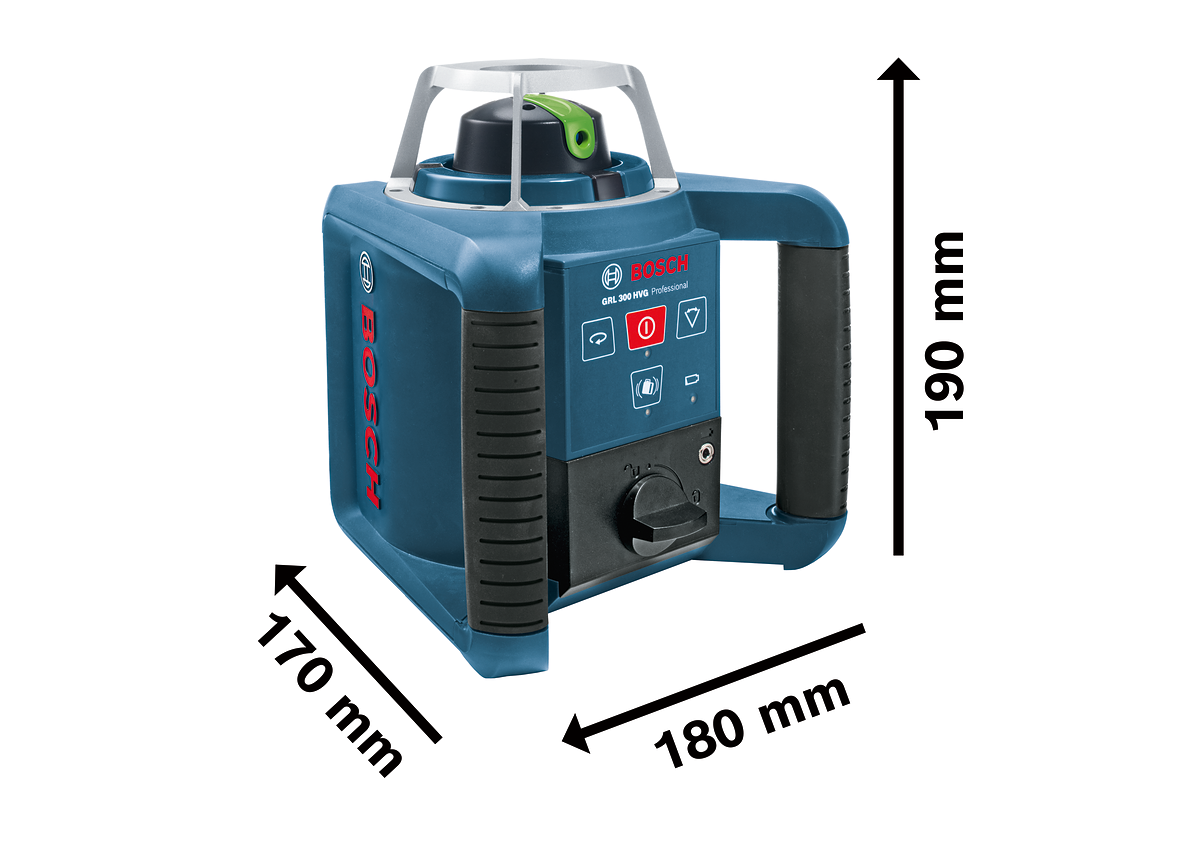

Weight, approx. |
1.8 kg |
|
Colour of laser line |
green |
|
Compatible laser receivers |
LR 1G |
