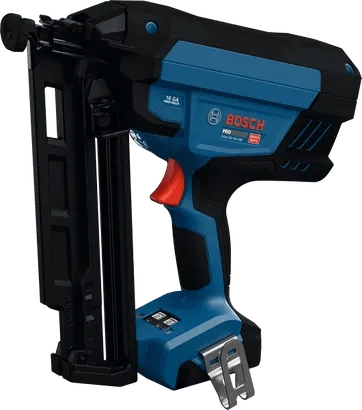

Bosch GNH18V-64-3M 18V Cordless Brad Nailer 64mm (Bare Tool)
BARE TOOL - Battery and Charger not yet included.
Bosch GNH18V-64-3M Cordless Brad Nailer 64mm 18V (Bare) is a cordless 18V finish nailer designed to deliver pneumatic-style fastening performance without the need for gas or a compressor. It uses 16ga (1.6 mm) finish nails from 32 – 64mm with a 20° collation angle and features a brushless EC motor, direct drive system, precision depth adjustment, and single or contact activation modes.
Key Benefits
- 20% less weight compared to GNH 18V-64-2 M thanks to smaller motor unit perfectly adapted to the required driving force
- Less noise and no ramp-up sound due to innovative motor control activating the motor only when needed
- More compact design thanks to motor and flywheel being combined into a direct drive
Product Overview
The Bosch GNH18V-64-3M is an 18V cordless finish nailer designed for cabinet installation, flooring, window and door installation, and interior finishing applications. Its brushless motor provides the power needed to fully sink nails, while the direct drive system reduces weight, improves compactness, and minimizes operating noise. It also features toolless jam clearing, a wide view contact tip for better visibility and precise nail placement, dry-fire lockout, double LED work lights, an integrated belt hook, and stepless precision depth adjustment.
Ideal Applications

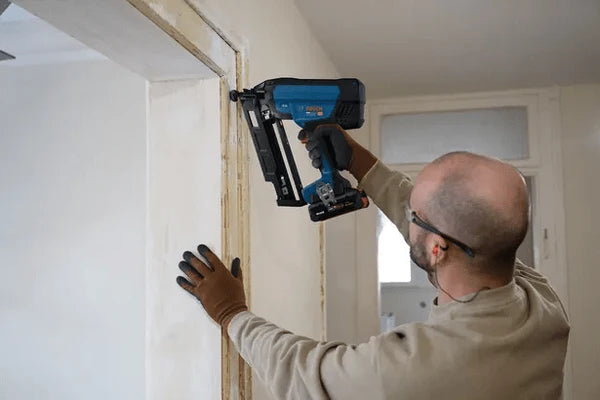

- Window and door casings, stair balusters, and wainscots
- Crown mouldings and skirting boards

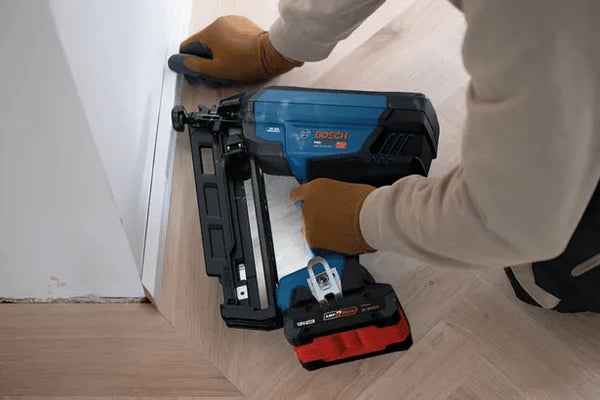

- Cabinet installation, flooring, and interior finishing work
Technical Specifications
| Brand | Bosch |
| Model | GNH18V-64-3M |
| Product Type | Cordless Finish Nailer |
| SKU | 0601482A00 |
| EAN Code | 4053423678307 |
| Voltage | 18 V |
| Motor | EC |
| Nail Diameter | 16 / 1.6 [ga/mm] |
| Nail Length | 32 – 64 mm |
| Magazine Angle | 20° |
| Activation Modes | Single / contact |
| Precision Depth Adjustment | Yes |
| Dry-fire Lockout | Yes |
| Drive System | Direct drive |
| Jam Clearing | Toolless jam clearing |
| Contact Tip | Wide view contact tip |
| Work Light | Double LED |
| Belt Hook | Integrated belt hook |
| Tool Dimension (LxWxH) | 306 x 286 x 107 mm |
| Packaging Dimension (LxWxH) | 370 x 335 x 130 mm |
| Weight (Gross/Net) | 2.6 kg |
| Baretool Part No. | 3601D82A00 |
| Belt Clip Part No. | 1600A0214E |
Compatible Finish Nail Specifications
| Type | 20° 1.6/16g finish nails |
| Name Short | SK64-20 |
| Angle | 20° |
| Head Shape | T-Shape |
| Wire Dimension | 1.6 mm |
| Head Size | 2.8 mm |
| Thickness | 1.35 mm |
| Compatible Nail Length | 32 – 64mm |
Galvanised Finish Nails
| 32G / 32 mm | 2608200528 |
| 38G / 38 mm | 2608200529 |
| 44G / 44 mm | 2608200530 |
| 50G / 50 mm | 2608200531 |
| 57G / 57 mm | 2608200532 |
| 63G / 63 mm | 2608200533 |
| Pack Quantity | 2000 |
Stainless Steel Finish Nails
| 38NR / 38 mm | 2608200534 |
| 50NR / 50 mm | 2608200535 |
| 63NR / 63 mm | 2608200536 |
| Pack Quantity | 2000 |
What’s Included
- Bosch GNH18V-64-3M Cordless Brad Nailer 64mm 18V (Bare)
- Belt clip
