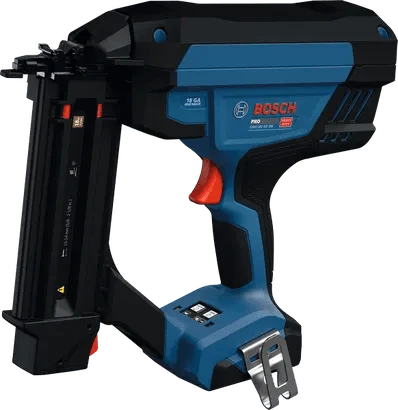

Bosch GNH18V-50-2M 18V Cordless Brad Nailer 50mm (Bare Tool)
Bosch GNH18V-50-2M Cordless Brad Nailer 18V (Bare) is a lightweight and compact 18V brad nail gun designed to deliver pneumatic-like power without requiring a compressor. It uses 18ga (1.2 mm) brad nails from 16 – 50mm and features a brushless EC motor, direct drive system, precision depth adjustment, and single or contact activation modes.
Key Benefits
- 20% lighter compared to GNH 18V-50 M thanks to smaller motor unit perfectly adapted to the required driving force
- Less noise and no ramp-up sound due to innovative motor control activating the motor only when needed
- More compact design thanks to motor and flywheel being combined into a direct drive
Product Overview
The Bosch GNH18V-50-2M is an 18V cordless brad nailer designed for finish carpentry, joinery, flooring, cabinet assembly, and glazing work. Its brushless motor provides the power required to fully sink nails, while the direct drive design helps reduce weight, size, and operating noise. A narrow nose improves visibility and precise nail positioning, while stepless depth adjustment allows quick control directly at the work contact element. Additional features include tool-free jam clearing, dry-fire lockout, double LED work lights, integrated belt hook, and easy switching between single and contact firing modes.
Ideal Applications

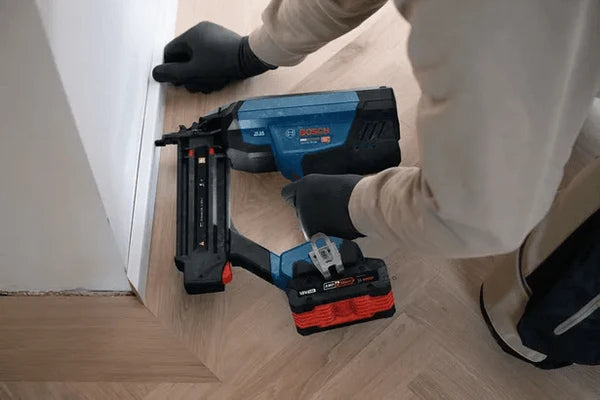

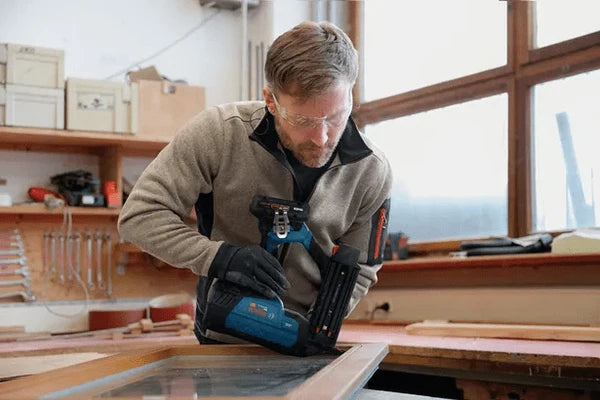

- Skirting boards, decorative moldings/trims, and glazing beads

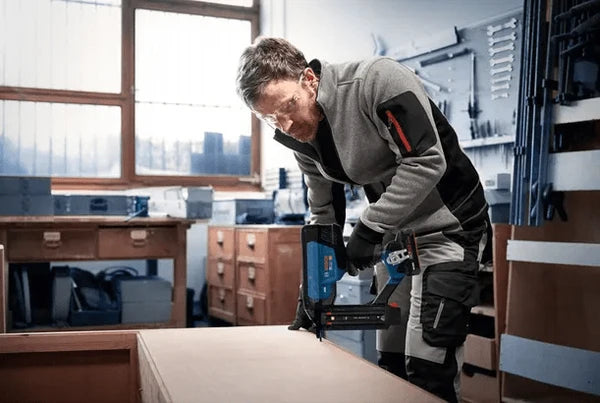

- Furniture building, cabinet assembly, and furniture back panels
- Window and door casings and other delicate finishing work
Technical Specifications
| Brand | Bosch |
| Model | GNH18V-50-2M |
| Product Type | Cordless Brad Nailer |
| SKU | 0601482C80 |
| EAN Code | 4053423678345 |
| Voltage | 18 V |
| Motor | EC |
| Nail Size (Wire Diameter) | 18 / 1.2 [ga/mm] |
| Nail Length | 16 – 50 mm |
| Magazine Angle | 0° |
| Activation Modes | Single / contact |
| Precision Depth Adjustment | Yes |
| Dry-fire Lockout | Yes |
| Drive System | Direct drive |
| Jam Clearing | Toolless jam clearing |
| Nose | Narrow nose |
| Work Light | Double LED |
| Belt Hook | Integrated belt hook |
| Tool Dimension (LxWxB) | 308 x 272 x 108 mm |
| Packaging Dimension (LxWxB) | 370 x 335 x 130 mm |
| Weight (Gross/Net) | 3.5 kg / 2.4 kg |
| Baretool Part No. | 3601D82C80 |
| Belt Hook Part No. | 1600A0214E |
Compatible Brad Nail Specifications
| Type | 18ga / 1.2mm brads |
| Version | Galvanised |
| Name Short | SK50 |
| Angle | 0° |
| Head Shape | T-shape |
| Wire Dimension | 1.2 mm |
| Head Size | 2 mm |
| Thickness | 1 mm |
| Available Lengths |
16 mm 19 mm 25 mm 30 mm 35 mm 40 mm 45 mm 50 mm |
| Pack Quantity | 5000 |
Compatible Brad Nail Part Numbers
| 16 mm / 16G | 2608200511 |
| 19 mm / 19G | 2608200512 |
| 25 mm / 25G | 2608200513 |
| 30 mm / 30G | 2608200514 |
| 35 mm / 35G | 2608200515 |
| 40 mm / 40G | 2608200516 |
| 45 mm / 45G | 2608200517 |
| 50 mm / 50G | 2608200518 |
What’s Included
- Bosch GNH18V-50-2M Cordless Brad Nailer 18V (Bare)
- Belt hook
