Outstandingly robust: 2-in-1 laser measure with green laser for rough jobsites

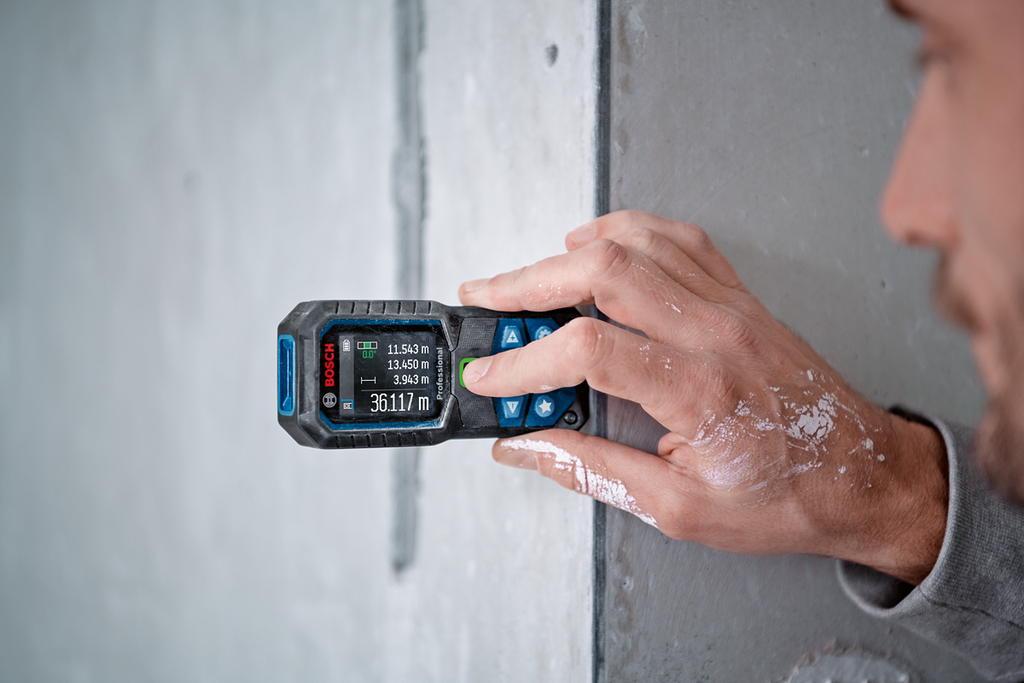

The laser measure GLM 50-23 G Professional offers a highly durable design and green laser spot with integrated inclinometer. Thanks to the IP 65 protection-certified design and a shock-absorbing rubber casing, the tool is protected against jet water and ingress of dust. Intuitive handling is ensured by its smart user interface with many helpful features such as a high-end colour display, a handy help function and a dedicated favourite shortcut button.

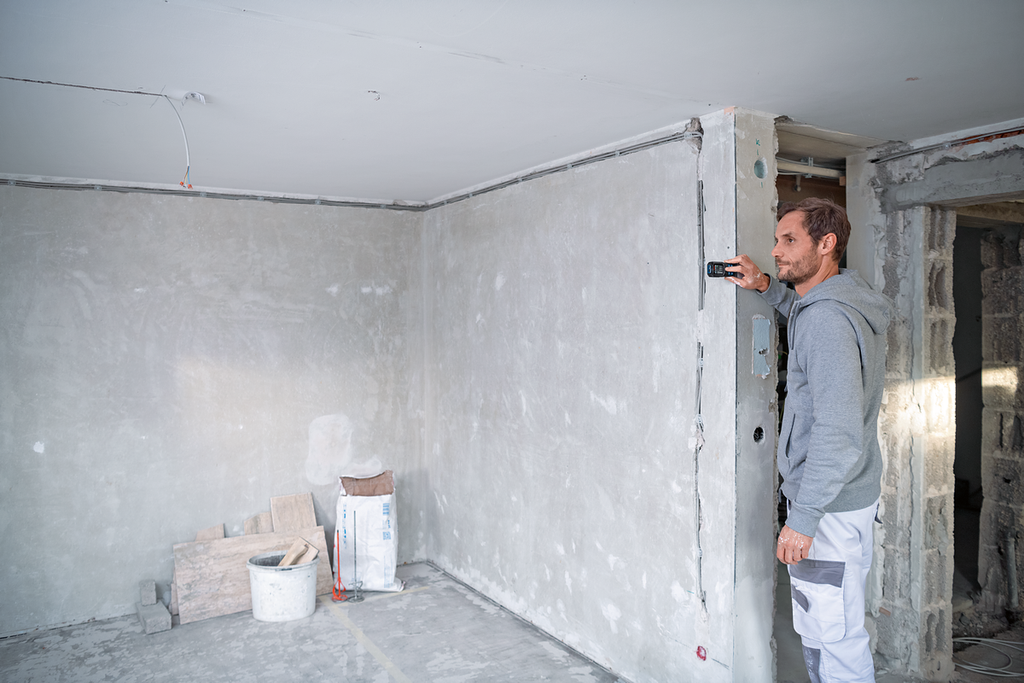

Being able to calculate material needs, room and wall areas, it is the ideal choice for architects, electricians, and many other professionals.
It comes with a dedicated favourite shortcut button. Users can then instantly access the preset measuring function by simply pressing the favourite button without the need to scroll through the HMI.
- Integrated 360° tilt sensor for easy angle / inclination measurement, an added versatility to the laser measure
- Intuitive user interface with additional supportive features (favourite button, colour display, help function) makes handling convenient
- Ideal for demanding jobsites thanks to IP 65 protection, and shock-absorbing rubber casing
Technical data
| Laser diode |
515 nm, < 1 mW
|
| Measuring range, up to |
50 m
|
| Measurement range |
0.05 – 50.00 m
|
| Laser class |
2
|
| Measurement accuracy, typical |
± 1.5 mm* (*plus use-dependent deviation)
|
| Measurement range of incline measurement |
0 – 360° (4 x 90°)
|
| Measuring accuracy (typical) |
± 0.2°* (*plus use-dependent deviation)
|
| Measurement time, typical |
< 0.5 s
|
| Measurement time, max. |
4 s
|
| Power supply |
2 x 1.5 V LR6 (AA)
|
| Automatic deactivation |
5 min
|
| Weight, approx. |
0.2 kg
|
| Units of measurement |
m/cm/mm/ft/inch/ft-inch
|
| Memory capacity (values) |
30
|
| Dust and splash protection |
IP 65
|
| Tripod thread |
1/4"
|
| Laser colour |
Green
|
