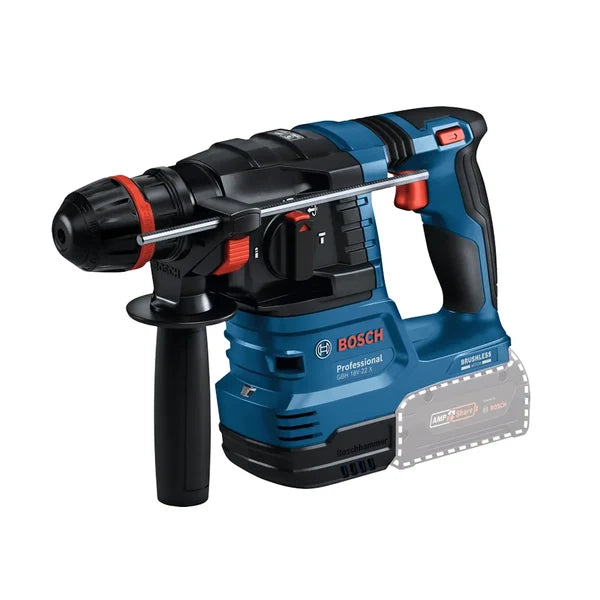

Bosch GBH 18V-22 X 18V Cordless Rotary Hammer SDS - Plus (Bare Tool) [One Chuck]
Battery and charger not included.
Bosch GBH 18V-22 X Cordless Rotary Hammer SDS-Plus (Bare) is an 18V rotary hammer designed for drilling, hammer drilling, and chiselling applications. It features ONECHUCK for compatibility with SDS-plus, cylindrical, and hex drill bits, along with KickBack Control and Vibration Control for improved user protection and drilling experience.
Key Benefits
- ONECHUCK - A single chuck that can fit SDS-plus, cylindrical and hex dill bits for your wide range of applications
- Dust-free work condition with Auto Power GDE 18V-12 / GDE 12 extractor attachment
- Increased user's protection against accidental jams thanks to KickBack Control
- More holes per charge and continuous power output thanks to motor with constant speed
- Better drilling experience due to Vibration Control, designed to absorb pulsation
Product Overview
The Bosch GBH 18V-22 X combines an 18V cordless platform with 2 J nominal impact energy, an impact rate of 0 – 4,675 bpm, and rated speed of 0 – 1,050 rpm. Its ONECHUCK tool holder supports SDS plus, cylindrical, and HEX accessories, providing flexibility across a wide range of drilling applications.
Ideal Applications
- Hammer drilling in concrete
- Chiselling in concrete
- Drilling applications using compatible SDS-plus, cylindrical, and hex drill bits
Technical Specifications
| Brand | Bosch |
| Model | GBH 18V-22 X |
| Battery Voltage | 18.0 V |
| Tool Holder |
SDS plus Cylindrical HEX |
| Impact Rate at Rated Speed | 0 – 4,675 bpm |
| Rated Speed | 0 – 1,050 rpm |
| Weight Excl. Battery | 2.6 kg |
| Impact Energy Nominal | 2 J |
Drilling Range
| Drilling Dia. in Concrete with Hammer Drill Bits | 4 – 22 mm |
| Opt. App. Range in Concrete with Hammer Drill Bits | 6 – 12 mm |
Total Vibration Values (Hammer Drilling in Concrete)
| Vibration Emission Value ah | 14.7 m/s² |
| Uncertainty K | 1.5 m/s² |
Total Vibration Values (Chiselling in Concrete)
| Vibration Emission Value ah | 9.6 m/s² |
| Uncertainty K | 1.5 m/s² |
Hammer Drilling in Concrete
| Vibration Emission Value ah | 14.7 m/s² |
| Uncertainty K | 1.5 m/s² |
Chiselling in Concrete
| Vibration Emission Value ah | 9.6 m/s² |
| Uncertainty K | 1.5 m/s² |
What’s Included
- Bosch GBH 18V-22 X Cordless Rotary Hammer SDS-Plus (Bare)
