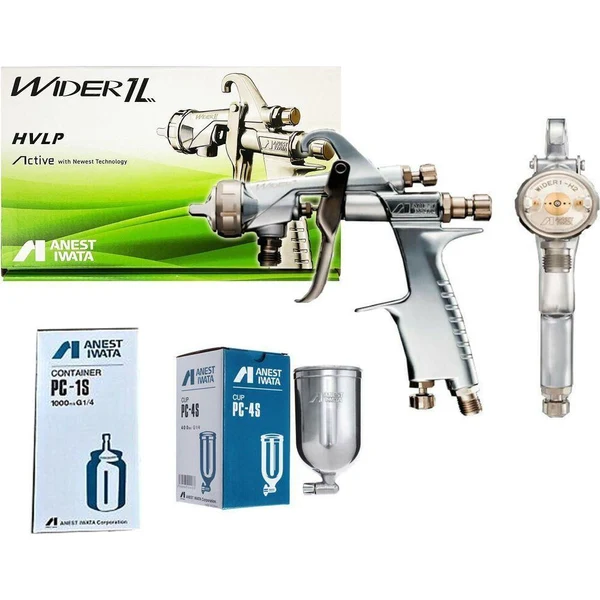

Anest Iwata WIDER1L Small Type Low Pressure Paint Spray Gun
₱31,100.00
Anest Iwata WIDER1L Small Type Low Pressure Paint Spray Gun
Model Replacing LPH-101
|
Model |
Feed |
Nozzle Size |
With Cup | Without Cup |
| Price | Price | |||
| WIDER1L-12G2P | Pressure | 1.2 mm | - | 31,100.00 |
| WIDER1L-2-12J2S | Suction | 1.2 mm | 30,400.00 | 26,700.00 |
| WIDER1L-2-14J2S | Suction | 1.4 mm | 30,400.00 | 26,700.00 |
| WIDER1L-2-16J2S | Suction | 1.6 mm | 30,400.00 | 26,700.00 |
| WIDER1L-2-12J2G | Gravity | 1.2 mm | 29,200.00 | 26,700.00 |
| WIDER1L-2-14J2G | Gravity | 1.4 mm | 29,200.00 | 26,700.00 |
| WIDER1L-2-16J2G | Gravity | 1.6 mm | 29,200.00 | 26,700.00 |
|
Model |
Air Pressure |
Air Consumption |
Fluid Output |
Pattern Width (mm) |
Paint Cup |
| WIDER1L-12G2P | 0.34 mpa | 530 nl/min | 350 ml/min | 270 mm | - |
| WIDER1L-2-12J2S | 0.1 mpa | 200 nl/min | 60 ml/min | 170 mm | PC-1S |
| WIDER1L-2-14J2S | 0.1 mpa | 200 nl/min | 80 ml/min | 180 mm | PC-1S |
| WIDER1L-2-16J2S | 0.1 mpa | 200 nl/min | 95 ml/min | 190 mm | PC-1S |
| WIDER1L-2-12J2G | 0.1 mpa | 200 nl/min | 80 ml/min | 200 mm | PC-4S |
| WIDER1L-2-14J2G | 0.1 mpa | 200 nl/min | 130 ml/min | 220 mm | PC-4S |
| WIDER1L-2-16J2G | 0.13 mpa | 240 nl/min | 100 ml/min | 220 mm | PC-4S |
